| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | BDV-2 |
| Minimum Order Quantity: | 1 Set Transformer Oil Breakdown Voltage Tester |
| Price: | Negotiable |

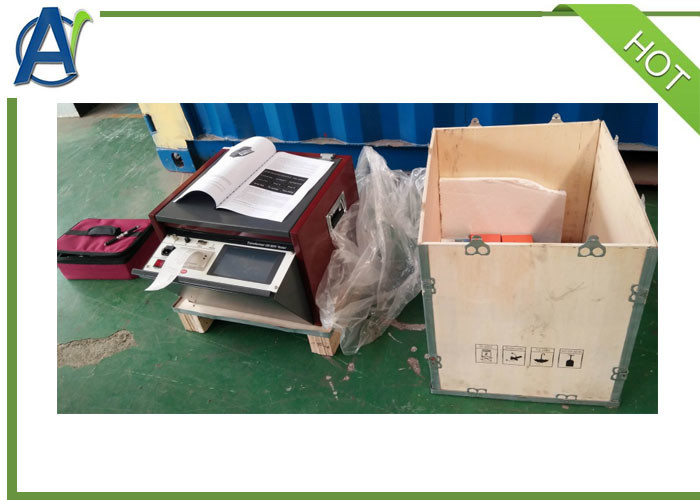

| Packaging Details: | Transformer Oil Breakdown Voltage Tester packed in Plywood case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 sets per month |
| Power Supply: | AC220V, 50Hz | Display: | LCD |
|---|---|---|---|
| Output Voltage: | AC 0V~80KV Or 0~100KV | Accuracy: | ±(1% Of Full Scale + 2 Digits) |
| Warranty: | 1 Year | Keyword: | Oil Testing Set,Breakdown Voltage Testing Set |
| Rate Of Voltage Rise: | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% | Temp.measuring Range: | 0°C To 70°C, Or Better |
| Highlight: | Transformer Oil Test Set,Transformer Oil Breakdown Voltage Tester,Dielectric Oil Breakdown Voltage Tester |
||
I.Introduction:
It is designed according to IEC156 Insulating Oil Dielectric Strength Test Method;

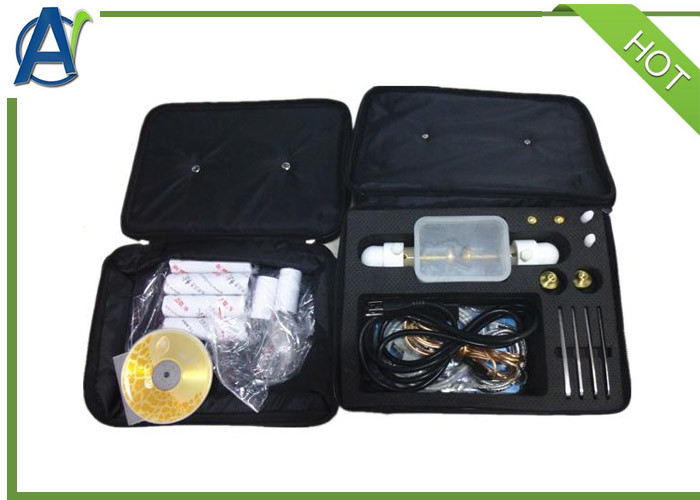

The oil test vessel with temperature measurement unit, so it can detect oil temperature.
With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;

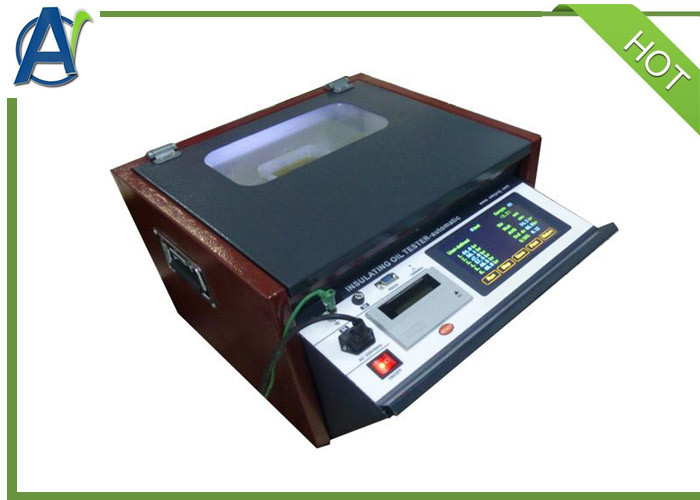

This dielectric oil breakdown voltage testing set has large LCD display, all the selection can be done by touch panel with color LCD;
This dielectric breakdown voltage testing set also has micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;
This portable oil testing set is multi-functional, stable, and easy for operation
II.Specifications:
| No. | Parameters | Specifications |
| 1 | Output voltage | AC 0V~80KV or 0~100KV |
| 2 | Rate of voltage rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
| 3 | Max. test times | 9 |
| 4 | Stir time | 0~999s |
| 5 | Wait time | 0~999s |
| 6 | Measurement accuracy | ±(1% of full scale + 2 digits) |
| 7 | Resolution | 0.1KV |
| 8 | Temperature measurement range | 0°C to 70°C, or better |
| 9 | Temperature resolution | 1°C, or better |
| 10 | Data storage | 100 groups |
| 11 | Weight | 38kg |
| 12 | Size | 550 mm*500mm*580mm |
| 13 | Power supply | AC220V, 50Hz |
| 14 | Working environment | Room temperature to 45°C, humidity<85% |
