Advanced Instruments Co.,Limited
To Be Advanced in Quality and Service!
| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO9001 |
| Model Number: | FVT |
| Minimum Order Quantity: | 1 set ASTM D3014A Vertical Flammability Tester |
| Price: | Negotiable |
| Packaging Details: | ASTM D3014A Vertical Flammability Tester packed in plywood case |
| Delivery Time: | 30 days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 100 sets each month |
| Test Standard: | ASTM D3014A,GB 8624,GB/T 8333 | Function: | Test Method For Flame Height, Time Of Burning, And Loss Of Mass |
|---|---|---|---|
| Test Object: | Rigid Thermoset Cellular Plastics | Power Supply: | 220V,50Hz |
| Size: | 420 Mm (W) X 350 Mm (D) X 520 Mm (H) | Display: | Digital |
| Warranty: | 1 Yearr | Weight: | 15KG |
| Highlight: | ASTM D3014A Vertical Flammability Tester,ASTM D3014A,Vertical Flammability Tester |
||
Introduction:

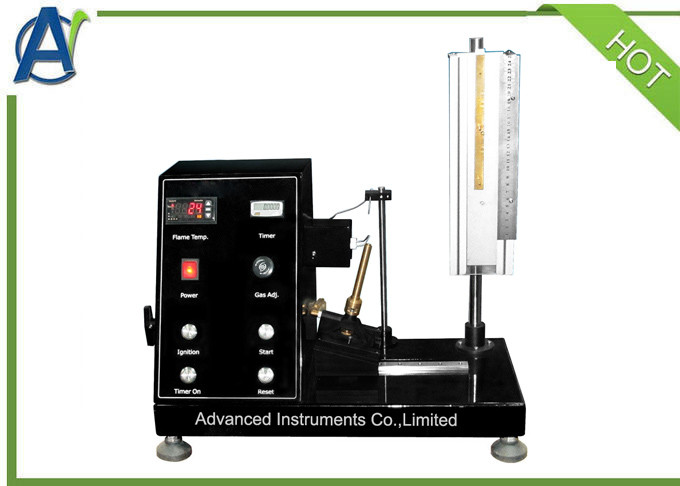

This Vertical Flammability Tester is suitable for the flame height, burning time and loss of mass of Rigid Thermoset Cellular Plastics in a vertical position. It meets the standards of GB/T 8333 and ASTM D3014A.
Main features:
1. ASTM D3014A Vertical Flammability Tester is equipped with Bunsen burner, which can provide a test temperature at 900℃;
2. The thermocouple can be moved manually to avoid damage caused by prolonged exposure to flame;
3. The test can be completed with one button, and the burner adopts automatic driving mode;
4. Through the test steel ruler, the burning length can be displayed;
5. The gas flow can be adjusted and cut off automatically;
6. The test box is treated with Teflon to avoid corrosion.
Specifications of ASTM D3014A Vertical Flammability Tester:
| 1 | Power supply |
220V,50HZ |
| 2 | Dimension | 420 mm (W) x 350 mm (D) x 520 mm (H) |
| 3 | Weight | 15KG |
| 4 | Environmental temperature | 10°C ~ 35°C |
| 5 | Installation area | with fume hood |
| 6 | Gas | Industrial propane |
