Advanced Instruments Co.,Limited
To Be Advanced in Quality and Service!
| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-1742 |
| Minimum Order Quantity: | 1 set Lubricating Oil Separation Tester |
| Price: | Negotiable |
| Packaging Details: | Lubricating Oil Separation Tester packed Hardboard |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Test Standard: | ASTM D1742 | Test Method: | Static Method |
|---|---|---|---|
| Temperature Control Accuracy: | 25℃±1℃ | Power Supply: | AC220V±10% 50HZ |
| Warranty: | 1 Year | Total Power Consumption: | 1200W |
| Dimension: | 490*500*880mm | Weight: | 60KG |
| Highlight: | ASTM D1742,Oil Separation Tester,Lubricating Oil Separation Tester |
||

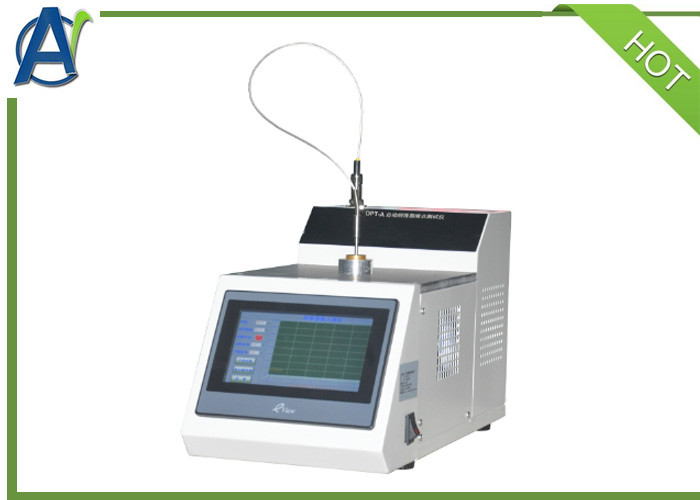

Introduction
ASTM D1742 test method covers the determination of the tendency of a lubricating grease to separate oil during storage in both normally filled and partially filled containers.
This test method is not suitable for greases softer than NLGI No. 1 grade.
Main Features:
◆This Lubricating Grease Oil Separation Tester adopts digital gauge shows pressure, the result is clear at a glance
◆High precision needle valve control pressure
◆Temperature display: digital display thermostat
Technical specifications
| Test units | 2 |
| Temperature controlling accuracy | 25℃±1℃ |
| Pressure range | 1.72kPa±0.07kPa |
| Sieve aperture | 75μm |
| Pressure display | Precise digital pressure gauge |
| Power supply | AC220V 50Hz |
| Total power consumption | 1200W |
| Dimension | 490*500*880mm |
| Weight | 60KG |
