Advanced Instruments Co.,Limited
To Be Advanced in Quality and Service!
| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-4289 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Hardboard |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Test Standard: | ASTM D4289 | Power Supply: | AC220V,50HZ |
|---|---|---|---|
| Temperature Control Range: | RT~150ºC | Timing Method: | Digital Timer |
| Total Power Consumption: | ≤1500W | Weight: | 45KG |
| Dimension: | 600*600*650mm3 | Standard Test Piece: | 50 ×25× 2mm |
| Temperature Controller: | Omron | Color: | White |
| Highlight: | Elastomer Compatibility Analyzer,ASTM D4289,Elastomer Compatibility Apparatus |
||
Introduction:
This Elastomer Compatibility Analyzer is suitable for measuring the compatibility between lubricating grease and standard synthetic rubber. The standard synthetic rubber test piece with the specified size is placed in the grease sample at a certain temperature. After 70h test, its volume change and hardness change are used to evaluate the compatibility between the grease and the standard synthetic rubber.
Features
1.The Elastomer Compatibility Analyzer provides Standard neoprene and nitrile rubber test pieces: 50 ×25× 2mm;
2.Microcomputer temperature controller, digital display, accuracy ± 1 ºC, PT100 sensor;

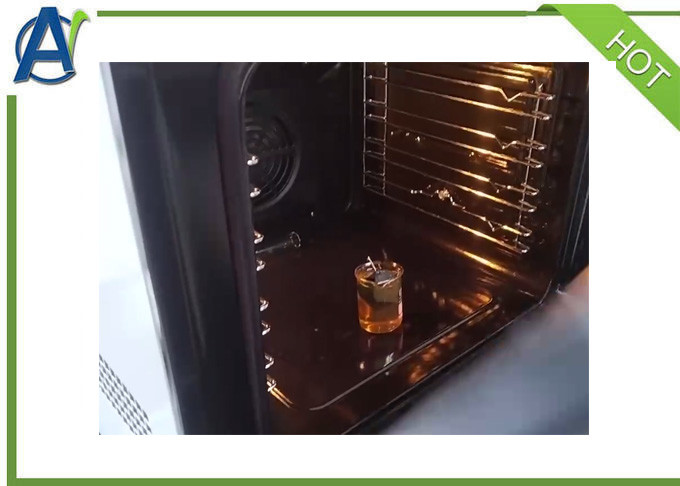

3.The heating box has a transparent observation window, which is convenient for operation and observation;
4.Digital display timer, recording test time, with time alarm;
5.The surface of the Elastomer Compatibility Analyzer is treated by electrostatic spraying, which is corrosive and easy to clean;
6.Novel V-shaped door opening mode, fully transparent high temperature resistant glass door;
7.The box is equipped with fan circulation and lighting devices;
8.High end enamel liner, corrosion resistant and easy to clean;
9.The air guide cooling system automatically starts to dissipate heat when the surface temperature of the instrument is too high.
II,Main technical parameters and index
| 1 | Power supply | AC220V±10%, 50Hz |
| 2 | Applicable standard | ASTM D4289,SH/T 0429 |
| 3 | Temperature control method | Digital PID temperature controller |
| 4 | Sample Test prompt | sound |
| 5 | Temperature control range | ambient~150ºC |
| 6 | Temperature control accuracy | ±1ºC |
| 7 | Total power consumption | 1500W |
| 8 | Dimension | 600mm×600mm×650mm |
| 9 | Net Weight | 45kg |
