| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | KV-R5 |
| Minimum Order Quantity: | 1 Set Kinematic Viscosity Tester |
| Price: | Negotiable |
| Packaging Details: | Kinematic Viscosity Tester packed in Hardboard |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Standards: | GB/T265, ASTM D445, ISO3104,DIN51366 | Test Method: | Capillary Viscometer |
|---|---|---|---|
| Temperature Range: | Ambient To 100.0℃ | Bath Capacity: | 20L |
| Power Supply: | AC(220±10%)V, 50Hz | Power Consumption: | 2.5KW |
| Warranty: | 1 Year | Working Units: | 4 |
| Highlight: | Kinematic Viscosity tester,Manual Viscometer,ASTM D445 |
||

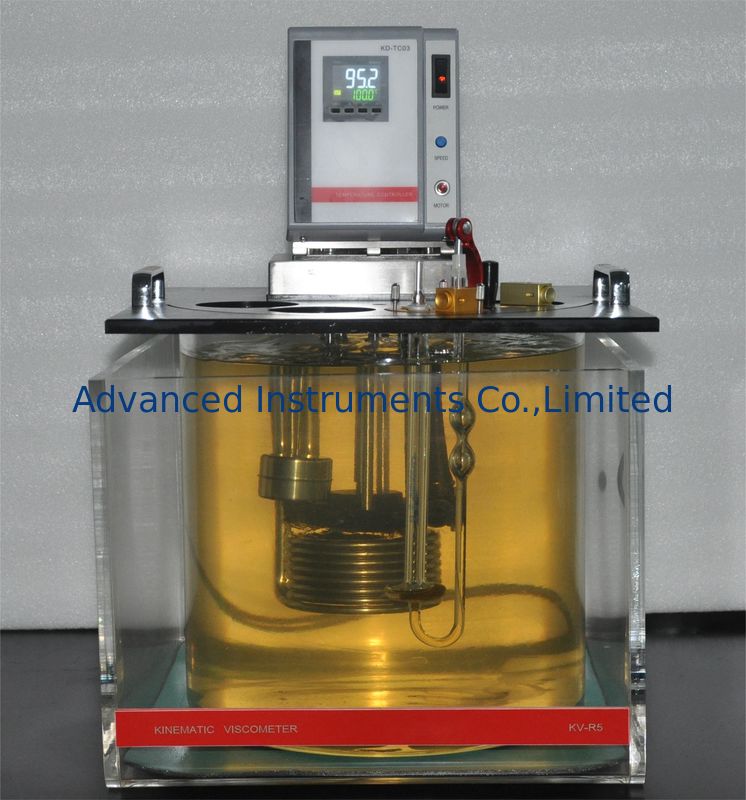

Summary
Principle:Under certain constant temperature,measure flow time of liquid with specified volume through one calibrated glass capillary,multiplication of capillary constant and flow time is the kinematic viscosity of this liquid under that temperature.
1.The heating bath is made of glass,which is easy to observe.
2.This Kinematic Viscosity Tester uses integrated structure,easy operation.
3.Two layers bath preserve heat effectively,inner bath Φ300×300mm.
4.4 samples can be tested simultaneously as parallel test.
5.Big power solid relay controls output,no voltage leakage.
6.There is stirrer above electronic heating bath.
7.Kinematic Viscosity Tester uses stainless steel heater.
8.The temperature controller displays heating status.
9.It's made by cold-rolled sheet,surface treated by Electrostatic spraying.It's corrosion resisting and easy to clean.
10.This Kinematic Viscosity Tester has safety device can prevent over-heat and low liquid level.
11.It's very convenient to contact control box.
12.Micro-computer controller,PID function,digitally display temperature(continuously display during test),accuracy 0.1ºC,Pt100 temperature sensor.
| 1 | Applicable standards | GB/T265, ASTM D445, ISO3104, DIN51366 |
| 2 | Temperature controlling method | imported PID digital temperature controller |
| 3 | Temperature controlling accuracy | ±0.1ºC |
| 4 | Heating method | electrical heating tube |
| 5 | Total power | 2.5KW |
| 6 | Working unit | 4 tubes |
| 7 | Power supply | AC220V/50Hz |
