Advanced Instruments Co.,Limited
To Be Advanced in Quality and Service!
| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | DPT-M |
| Minimum Order Quantity: | 1 set Dropping Point Tester |
| Price: | Negotiable |
| Packaging Details: | Dropping Point Tester packed in Hardboard |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Test Standard: | ASTM D566 | Oil Bath: | 600 Ml Beaker |
|---|---|---|---|
| Power Supply: | AC220V±10%/50HZ | Rotating Speed: | 60 RPM |
| Powr Consumption: | 900 W | Warranty: | 1 Year |
| Dimension: | 350mm×180mm×410mm | Color: | Black |
| Highlight: | ASTM D566 Dropping Point tester,Grease Dropping Point test equipment,ASTM D566 tester for Petroleum Testing |
||
Introduction

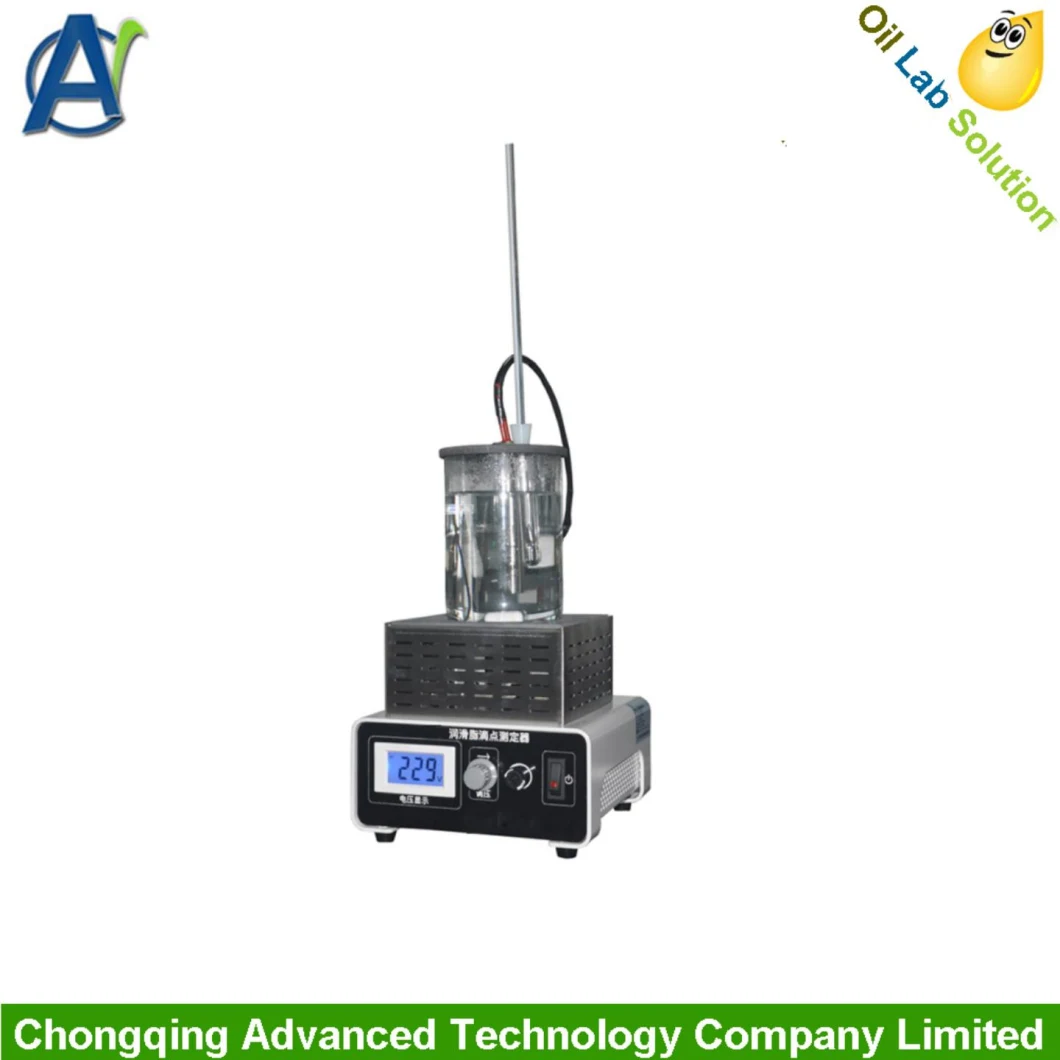

This Dropping point test set is suitable to determine dropping point of lubricating grease.
Test method:fill grease into cup,record the temperature at which the grease reach to a liquid state under the conditions of test.
Characteristic
1.Glass tank is easy to observe.
2.Integrated structure is easy to operate.
3.Grease cup is made of chrome plated brass,inner diameter is Φ9.92mm,hole is Φ28mm,height is 12mm.It meets requirements of ASTM.
4.Two sample can be tested simultaneously by this dropping point apparatus.
5.Heating power can be adjusted at random.
6.There is stirrer above electric heating bath.
7.Heater is stainless steel.
8.The pressure gauge display heating status.
9.The case made by cold rolled steel,surface is treated by electrostatic spraying,rust resistant and easy to clean.
10.Safety device can prevent over-heat and low liquid level.
11.Contact control box is very convenient.
12.The dropping point test set has safety facilities preventing overheating and low water levels.
Technical specifications
| 1 | Applicable standard | GB/T4929,ASTM D566,ISO2176 |
| 2 | Pressure display | LCD |
| 3 | Temperature controlling accuracy | ±0.1ºC |
| 4 | Heating mode | Electric heating tube |
| 5 | Total power | 800W |
| 6 | Working position | 2 units |
| 7 | Power supply | 220V,50Hz |
| 8 | Dimension | 210*220*390mm3 |
| 9 | Weight | 5KG |
Chongqing Advanced Technology Co., Ltd. is a professional supplier which is committed to offer best testing equipment from China for our clients, and our main products are fire testing equipment, petroleum products testing equipment, electrical testing equipment and general laboratory instruments.
Our instruments are widely used in various fields: Scientific institutions, colleges, inspection institutions, automotive, power sector, oil& Gas, aerospace, building material, wire and cable, furniture, textile etc. All Advanced Technology′s testing equipment are designed according to international test standards, such as ISO, ASTM, IEC, DIN, EN, GB, JIS, ANSI, UL, TAPPI, AATCC, VDE, CSA, CEN and so on.
Factory overview
Customer Feedback
Germany
USA
Packing: standard export carton/ wooden case per set.
Delivery method: usually delivered by express or air, other method are also available if necessary.
FAQ
1.What's the delivery time?
About 30 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
