| Place of Origin: | CHINA |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIRZH-20 |
| Minimum Order Quantity: | 1 Set Heat Bond Testing Machine |
| Price: | Negotiable |
| Packaging Details: | Heat Bond Testing Machine is packed in plywood case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Test Standard: | IEC60851-3 Test 18 | Test Object: | Enameled Round Wires |
|---|---|---|---|
| Weight: | About 40KG | Color: | Grey |
| Warranty: | 12 Months | ||
| Highlight: | Heat Bond Testing Machine,IEC60851-3 Test 18,wire testing machine |
||
Performance Characteristics
1.Executive standard: GB/T4074.3-2008/IEC60851-3 Test 18
2.Meet the requirements of GB/T6109-2008 standard
3. This heat bonding testing machine is used for testing the thermal bonding and solvent bonding performance of enameled round wires with a nominal diameter of 0.050mm and 2.000mm and below
4. The heat bonding testing machine determines the ability of the coil winding to bond together under the action of heat and solvent.
Standard accessories:
1.Round rod: φ 1, φ 2, φ 3, φ 4, φ 5, φ 6, φ 7, φ 8, φ 9, φ 10, φ 11, φ 12, φ 14, φ 16, φ 18, 15 types in total, 3 pieces for each
2.Round rod base: φ 1, φ 2, φ 3, φ 4, φ 5, φ 6, φ 7, φ 8, φ 9, φ 10, φ 11, φ 12, φ 14, φ 16, φ 18, 15 types in total, 3 pieces for each
3.Load weight applied to the coil during the preparation and bonding of the spiral coil:
0.05N, 0.15N, 0.25N, 0.35N, 0.5N, 0.75N, 1.25N, 1.75N, 2N, 2.5N, 3.25N, 4N, 4.5N, 5.5N,6.5N, 8N, 10N, 17 types in total, 3 for each

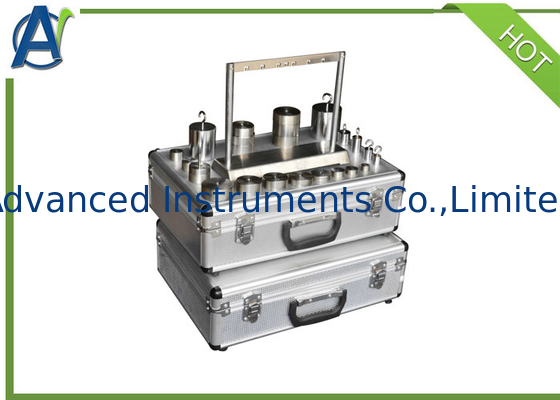

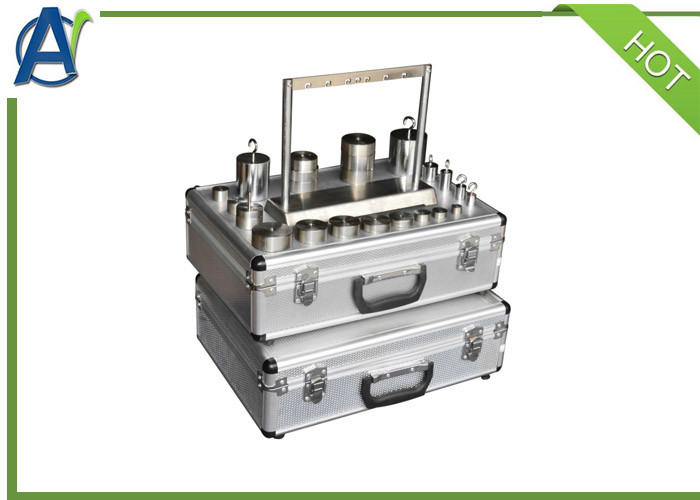

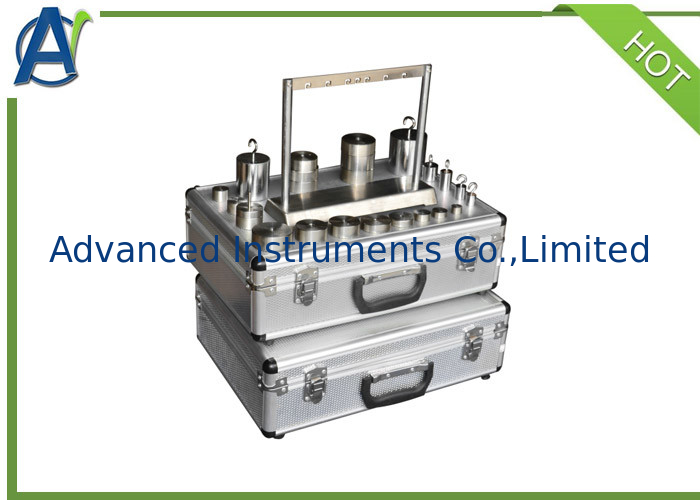

4.Load weights applied to bonding force at high temperature: 0.04N, 0.05N, 0.06N, 0.08N, 0.19N, 0.25N, 0.55N, 0.8N, 1.2N, 1.7N, 2.1N, 2.6N, 3.2N, 3.8N, 4.4N, 4.9N, 6.4N, 7.9N, 18 types in total, 3 pieces for each
5.Special load weights for maximum tension during coil preparation and winding: 0.12N, 0.3N, 2N, 5N, 12N, 30N, 6 types in total, 1 pieces for each
