Advanced Instruments Co.,Limited
To Be Advanced in Quality and Service!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC42167B |
| Minimum Order Quantity: | 1 Set Thermal Aging Test Chamber |
| Price: | Negotiable |
| Packaging Details: | Thermal Aging Test Chamber is packed in plywood case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Test Standard: | IEC60811-401 | Test Object: | Cable,wire,rubber,plastic |
|---|---|---|---|
| Overall Dimension: | 950×750×1400mm3 | Color: | White |
| Controller: | 7-inch Touch Screen | Temp.control Range: | Room Temperature (about 25ºC) ~ 300ºC |
| Heating Time: | About 50 Mins To 300ºC | Ventilation Volume: | 8~20 Times/hour |
| Size Of Inner Chamber: | 450×450×500mm3 | Material Of Inner Chamber: | SUS#304 Stainless Steel |
| Highlight: | Aging Test Chamber,Thermal Aging Chamber,IEC60811-401 |
||
Product description:

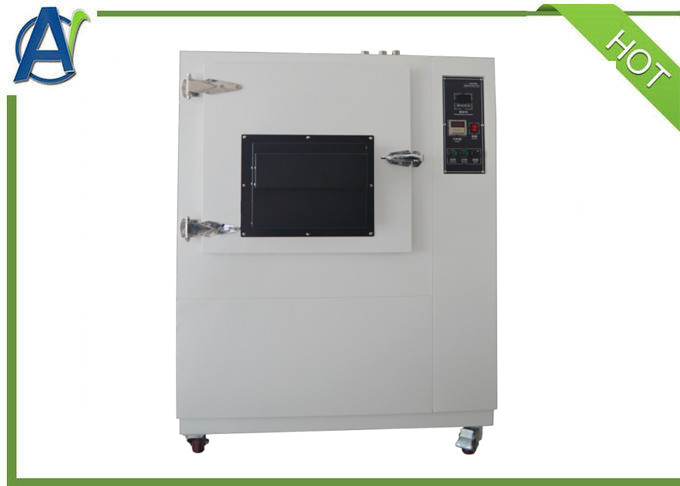

AIC42167B Natural ventilation aging test chamber is mainly used for wires, cables, plastics, rubbers and other industries for the natural ventilation thermal aging test. The temperature control is adopted a digital instrumentation, easy to operate. it has an observation glass window, stainless steel working room. The shell is made of the high quality steel plate, whose surface is spray treated. the door seal is made of heat-resistance silicone rubber, healthy and safe.
Technical parameters:
| 1 | Power supply | AC 220V 50/60HZ 16A |
| 2 | Controller | 7-inch touch screen |
| 3 | Temperature range | room temperature (about 25ºC) ~ 300ºC |
| 4 | Temperature fluctuation | ≤±0.5ºC |
| 5 | Temperature uniformity | ≤±2ºC |
| 6 | Heating time | it takes about 50mins from room temperature to 300ºC |
| 7 | Ventilation volume | 8~20 times/hour |
| 8 | Inner chamber dimensions | 450×450×500mm3 |
| 9 | Inner chamber material | SUS#304 stainless steel |
| 10 | Material of outer box | anti-static spraying (white) |
| 11 | Insulation material | five sides filled with 100mm thick glass fibre cotton, bottom filled with 60mm thick glass fibre cotton. |
| 12 | Overall dimensions | 950×750×1400mm3 |
