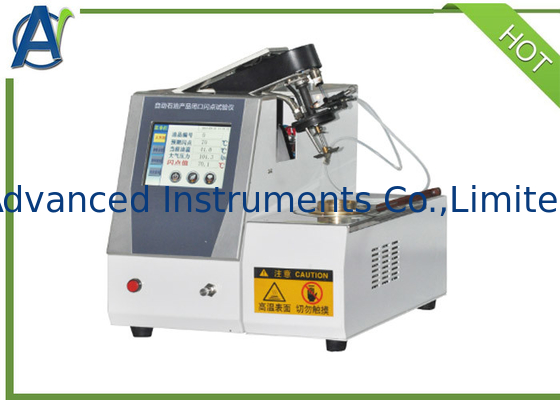

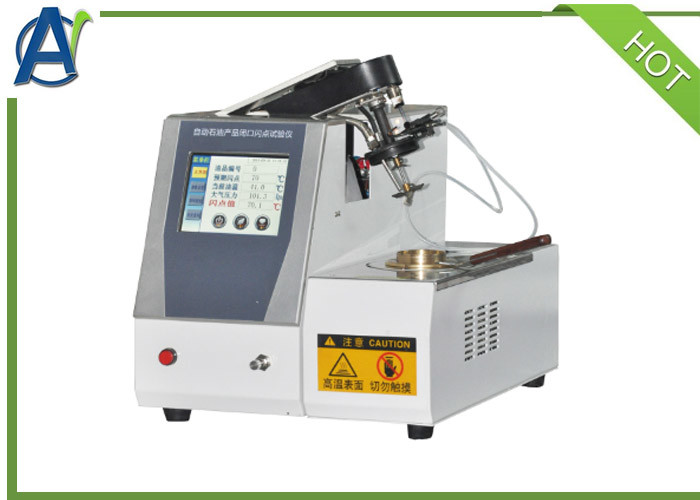

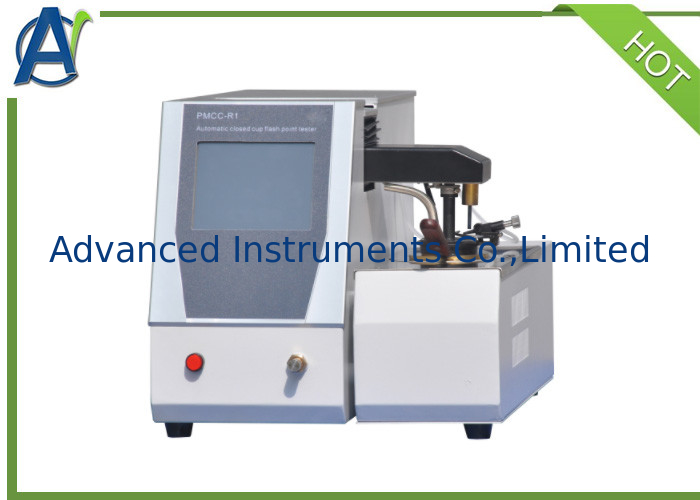

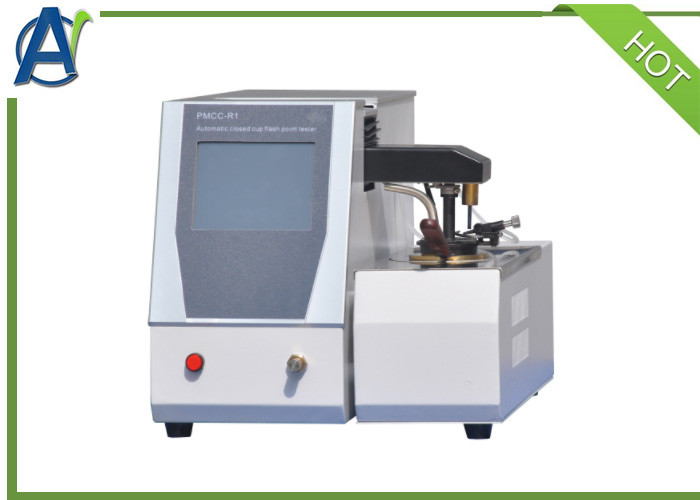

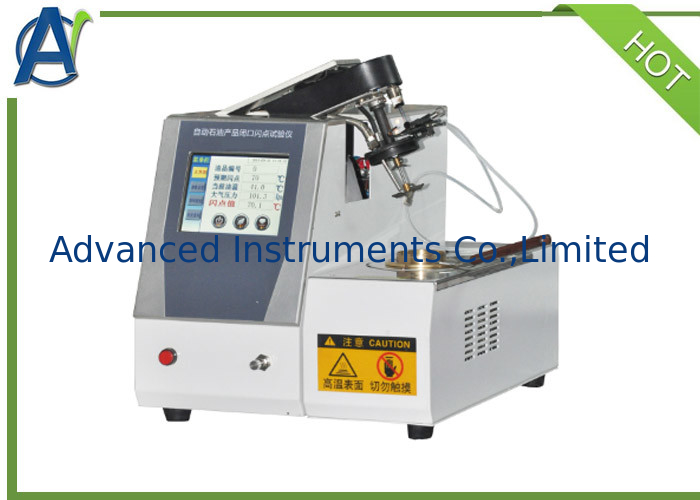

220V ASTM D93 Pensky Martens fully automatic Closed Cup Flash Point test instrument

Product Description

ASTM D93 Automatic PMCC Flash Point Analyzer


 According to GB261-83 and ISO2719-73 Closed Cup Flash Point Test Method,this Pensky-Martens Closed Cup Flash Point Analyzer adopts micro-computer processing technology and advanced PID temperature controlling technology,with fast temperature rising speed,accurate temperature controlling and test result.


This procedures of whole test is automatic,and it has functions of automatic atmosphere correction,automatic lifting,automatic temperature rising and switching,automatic opening cover and ignition,automatic end point checking,automatic printing out test result,automatic air cooling,automatic stop when over-heated.



Product Parameters

Features of Automatic PMCC Flash Point Analyzer:

1.The Pensky-Martens Closed Cup Flash Point Analyzer is controlled by micro-computer,the whole test procedures and data printing are automatically proceeded.

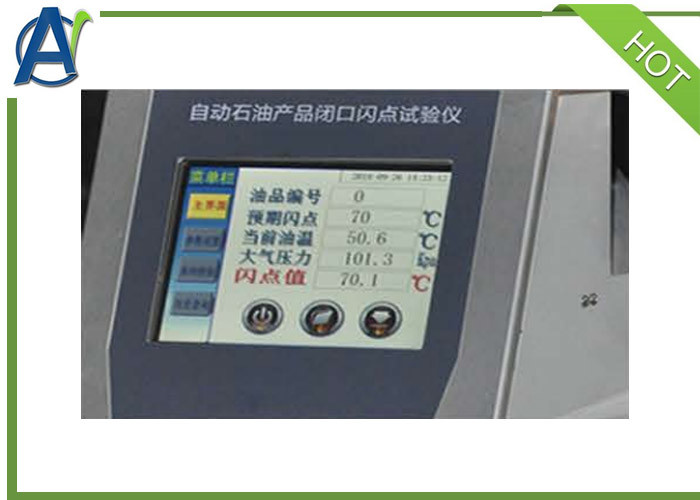

2.Big LCD screen display in English,showing test temperature,oil number,test time etc.Whole test process is clear.

3.Micro-printer can print out the result with low cost

4.Temperature is raised by single-chip machine,which makes sure the accuracy of test result

5.When the test is finished,the machine can be cooled automatically by forced air.

6.The flame size can be adjusted

7.Automatic lifting system is easy to operate

8.It's made by cold-rolled sheet,surface treated by Electrostatic spraying.It's corrosion resisting and easy to clean.

9.The Pensky-Martens Closed Cup Flash Point Analyzer can be operated by manual or automatically
10.Correction function:current date,time,temperature and atmosphere
11.It has protection and self-diagnosis procedures
12.Both main controlling and measuring parts are imported,to make sure the reliability and stability.
13.The Pensky-Martens Closed Cup Flash Point Analyzer is compact,small and beautiful
14.High degree of automation:set flash point as per operation method on LCD display screen,press "Start" key,the whole test will be proceeded automatically.



Technical Parameters of Pensky-Martens Closed Cup Flash Point Analyzer:


1	Applicable standards	GB/T261, ISO2719, ASTM D93, DIN51751
2	Display mode	LCD big screen in English
3	Display content	Control temperature and set temperature of expected flash point; Fault warning; Each simulated parameters and pressure setting
4	Measuring range	40~370ºC
5	Measuring accuracy	±0.1ºC
6	Accuracy	≤104ºC±1ºC ,≥104ºC±2ºC
7	Repeatability	Flash point ≤104ºC,error ±1ºC Flash point ≥104ºC,error ±2ºC
8	Refrigeration method	forced-air cooling
9	Power supply	AC 220V±5%,50HZ
10	Power consumption	380VA
11	Environment temperature	10~55ºC
12	Environment humidity	30~80%

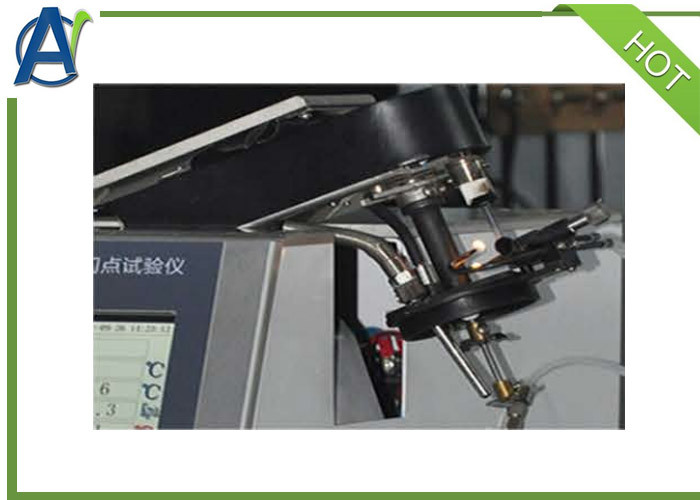

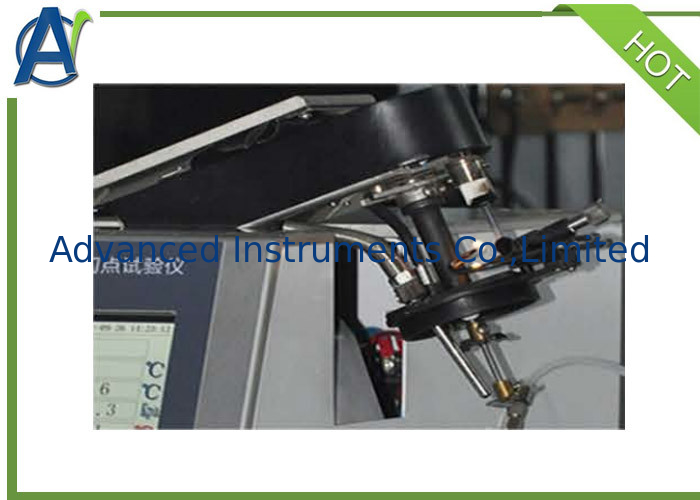

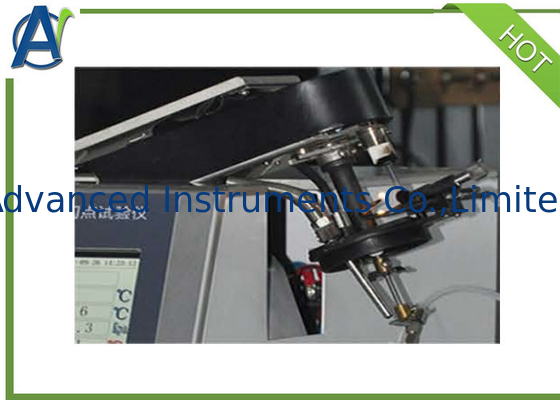

Detailed Photos

Factory Overview

Factory overview

Chongqing Advanced Technology Co., Ltd. is a professional supplier which is committed to offer best testing equipment from China for our clients, and our main products are fire testing equipment, petroleum products testing equipment, electrical testing equipment and general laboratory instruments.

Our instruments are widely used in various fields: Scientific institutions, colleges, inspection institutions, automotive, power sector, oil& Gas, aerospace, building material, wire and cable, furniture, textile etc. All Advanced Technology′s testing equipment are designed according to international test standards, such as ISO, ASTM, IEC, DIN, EN, GB, JIS, ANSI, UL, TAPPI, AATCC, VDE, CSA, CEN and so on.


Customer Feedback

Germany

USA

Package

Packing: standard export carton/ wooden case per set.
Delivery method:   usually delivered by express or air, other method are also available if necessary.


FAQ

1.What's the delivery time?
About 20 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
