| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-2809 |
| Minimum Order Quantity: | 1 set Simulated Service Corrosion Testing Equipment |
| Price: | Negotiable |
| Packaging Details: | Simulated Service Corrosion Testing Equipment packed in Plywood case |
| Delivery Time: | 50days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Power Supply: | AC220V /50HZ | Test Standard: | ASTM D2809, SH/T0087 |
|---|---|---|---|
| Flow Rate: | 0 ~ 95L / Min | Temperature Control Range: | Normal Temperature ~ 88 ºC |
| Fuse: | 20A | Power Consumption: | 7KW |
| Timing: | Digital Timer | Temp.control: | Omron |
| Color: | Black | OEM Service: | Available |
| Highlight: | ASTM D2809 Cavitation Corrosion tester,Erosion-Corrosion Characteristics Tester,ASTM D2809 test instrument for engine coolant |
||
Characteristic
1. The Cavitation Corrosion and Erosion-Corrosion Characteristics Tester is composed of operation and display, heating control, speed control, pressure control, flow control system and supporting components;

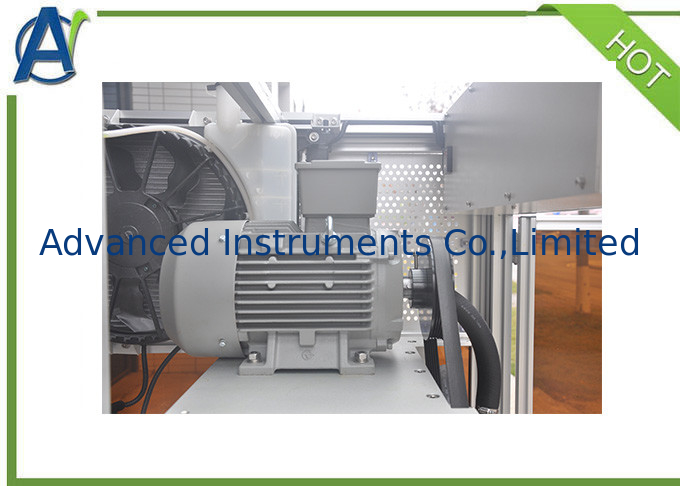

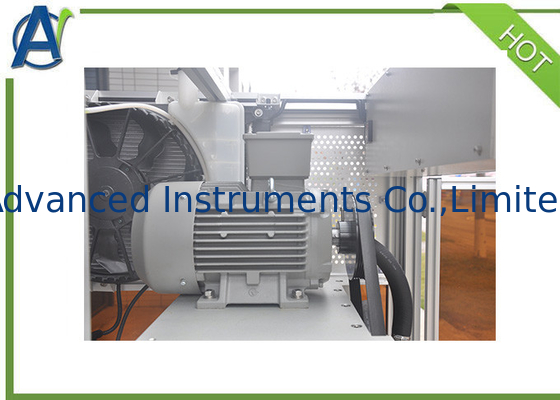

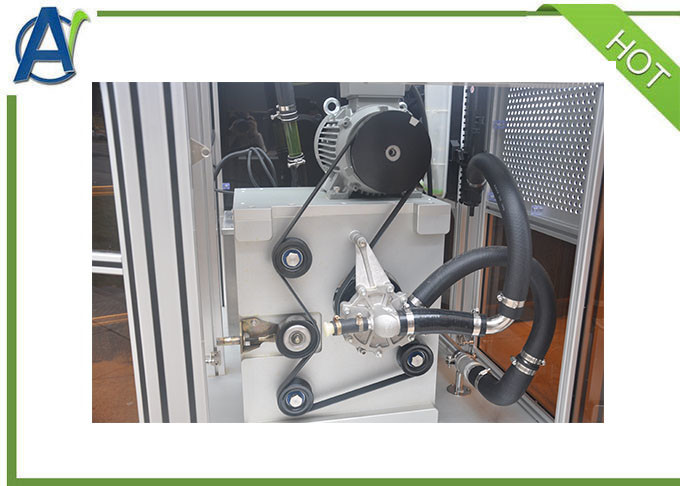

2. Motor: used for coolant circulation drive, linked with water pump;

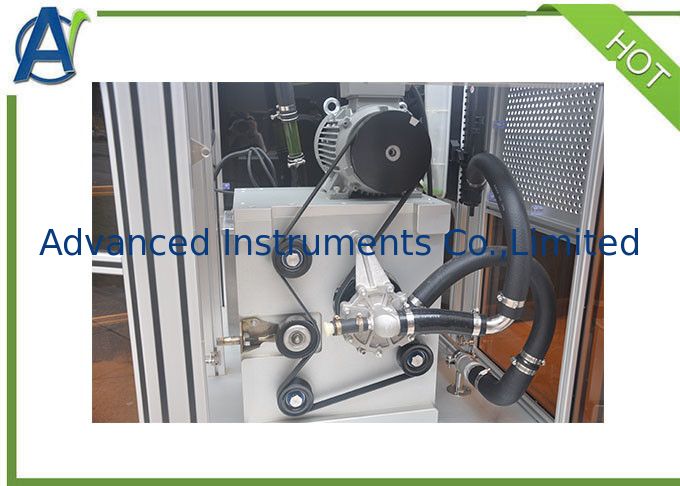

3. Water pump: the standard ASTM D method requires imported water pump;
4. Vacuum pressure gauge: digital display of real-time pump inlet vacuum;
5. Throttle valve: used to regulate the flow rate of water pump;
6. Heater: heat the coolant to the test temperature;
7. Liquid storage tank: stores cooling liquid for pipeline system;
8. Heat exchanger: provide 35 ~ 38 ºC test temperature through cooling water heat exchange;
9. Regulating valve: three regulating valves are used to adjust vacuum degree and test pressure;
10. Pressure gauge: displays the pressure during the test;
11. Expansion tank: steam expansion device
Technical specifications of ASTM D2809 Cavitation Corrosion and Erosion-Corrosion Characteristics Tester
| 1 | Applicable standards | ASTM D2809, SH/T0087 |
| 2 | Environmental requirements | 20 ºC ~ 25 ºC, humidity < 60% |
| 3 | Fuse | 20A |
| 4 | Pump speed | 0 ~ 4600 ± 100r / min |
| 5 | Temperature control range | < 650 ºC |
| 6 | Resolution (measurement) | 0.1 ºC |
| 7 | Temperature control accuracy | ± 0.1 ºC |
| 8 | Flow range | 0 ~ 20ml / min |
| 9 | Flow control accuracy | ± 5% |
| 10 | Power supply | AC220V 50Hz |
| 11 | Power consumption | 6.5KW |
