| Place of Origin: | CHINA |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | FRP |
| Minimum Order Quantity: | 1 SET Flooring Radiant Panel Test Apparatus |
| Price: | negotiable |
| Packaging Details: | Flooring Radiant Panel Test Apparatus packed in Plywood case |
| Delivery Time: | 60 days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 100 Sets per Month |
| Test Standard: | EN ISO 9239-1, ASTM E648, ASTM E970, NFPA 253 | Power Supply: | 230 Volts Nominal 10 Amps |
|---|---|---|---|
| Ambient Temperature: | Operating 10°C To 35°C | Gas: | Propane And Air Compressor |
| Size: | 1900mm (W) X 750mm X (H) X 2120mm (D) | Weight: | 235kg |
| Test Object: | Flooring Materials | Heat Flux Meter: | Range : 0 ~ 50 Kw/m2 |
| Highlight: | En ISO 9239-1 Flooring Radiant Panel Test Apparatus for Flooring Materials,ASTM E648 Thermal Radiation Tester for FlooringThermal Radiation Tester for Flooring Materials,Flooring Radiant Panel Apparatus Factory |
||
Standard:
ISO 9239-1: Flooring fire reaction test - Part 1: Combustion performance of flooring materials tested by radiant heat;
ASTM E 648: Critical Radiant Flux of Floor standard test - covering system uses radiant heat energy;
ASTM E 970: Using a Radiant Heat Energy Source, test insulation floor insulation standard test for Critical Radiant Flux using a radiant heat energy.
NFPA 253: Standard Test Method for using radiant heat energy, test plates overlay system Critical Radiant Flux.
Installation requirements
| 1 | Electrical | AC220V±10%, 50Hz;5KW |
| 2 | Ambient Temperature | Operating 10°C to 35°C |
| 3 | Dimensions |
Control box: 600(W)×750(D)×1600(H)mm Test part:Length1.4× width1.0× High2.2 M³ |
| 4 | Gas Supplies | Propane and compressed air |
| 5 | Weight | 350KG |
Optical system
1, The optical system comprising a light source color temperature is 2900 ± 100 K incandescent,lightreceiving silicon photodiode with an optical path test shutter, 0% and 100%, to facilitate the use of calibration;
2, The Flooring Radiant Panel Test Apparatus adopts imported light battery module measuring light attenuation. The system automatically calculates and generates a light transmittance curve translucent; printable Scribble

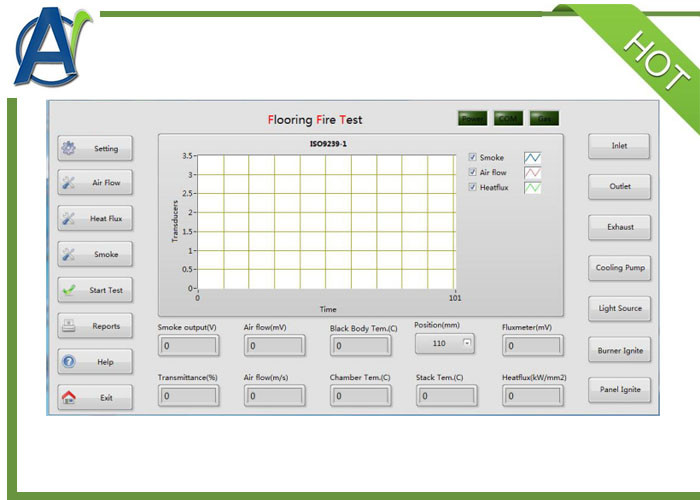

3, One button automatic and five level calibration system by computer.
Thermal radiation system
1, Heat radiation pyrometer accuracy of ± 0.5 ºC, away from the radiation board about 1.4m;
2, Radiation pyrometer sensitivity constant in the wavelength range 1um ~ 9um;
3, High-performa

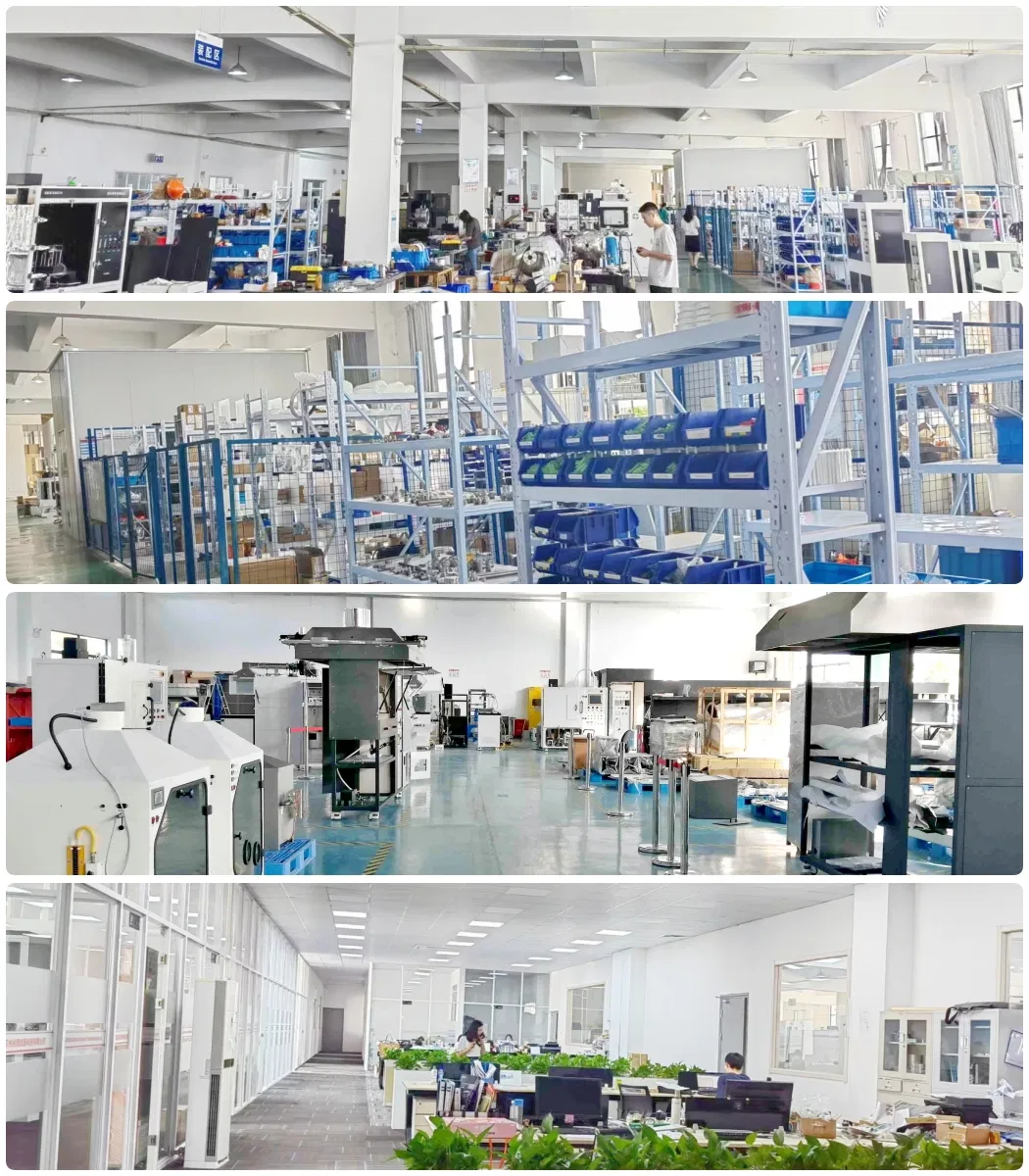

Factory overview
Chongqing Advanced Technology Co., Ltd. is a professional supplier which is committed to offer best testing equipment from China for our clients, and our main products are fire testing equipment, petroleum products testing equipment, electrical testing equipment and general laboratory instruments.
Our instruments are widely used in various fields: Scientific institutions, colleges, inspection institutions, automotive, power sector, oil& Gas, aerospace, building material, wire and cable, furniture, textile etc. All Advanced Technology′s testing equipment are designed according to international test standards, such as ISO, ASTM, IEC, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, VDE, CSA, CEN and so on.
Customer Feedback
Germany
USA
Transporation
Packing: standard export carton/ wooden case per set.
Delivery method: usually delivered by express or air, other method are also available if necessary.
FAQ
1.What's the delivery time?
About 60 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
