| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC131 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Hardboard |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Test Standard: | ASTM D2699,ASTM D2700, ASTM D613 | Measuring Range Of ON: | 40-120 |
|---|---|---|---|
| Measuring Range Of CN: | 20-100 | Display: | LED |
| Total Power Consumption: | 30ma | Weight: | 5KG |
| Dimension Of Monitor: | 224x106x40mm | Working Units: | 2 Holes |
| Printer: | Included | ||
| Highlight: | Cetane Value Analyzer,Octane Value Analyzer,ASTM D2699 ASTM D613 |
||
Introduction

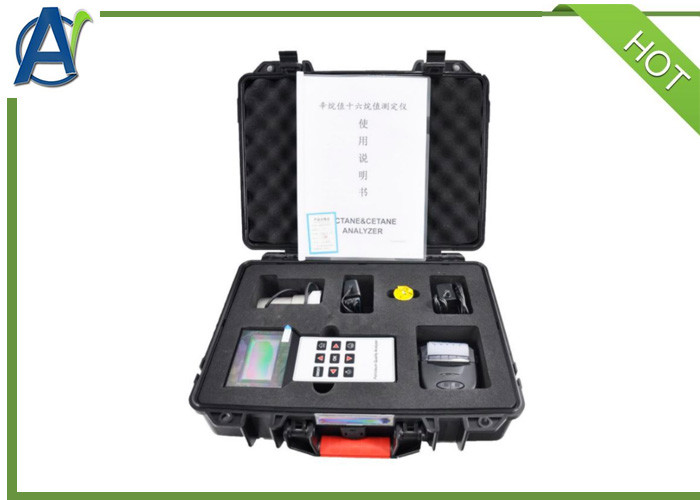

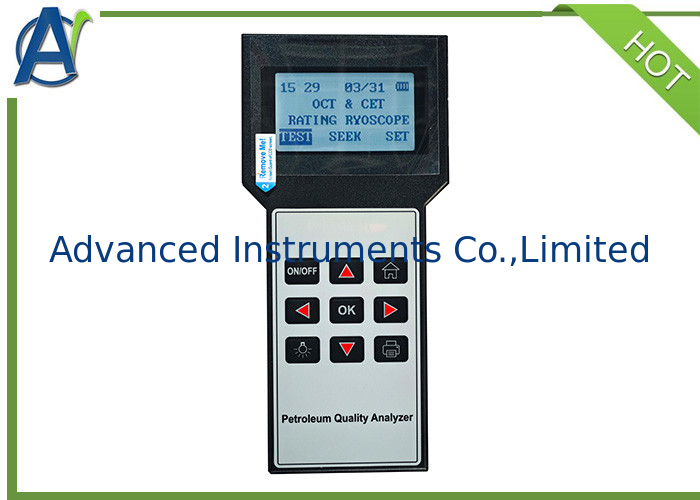

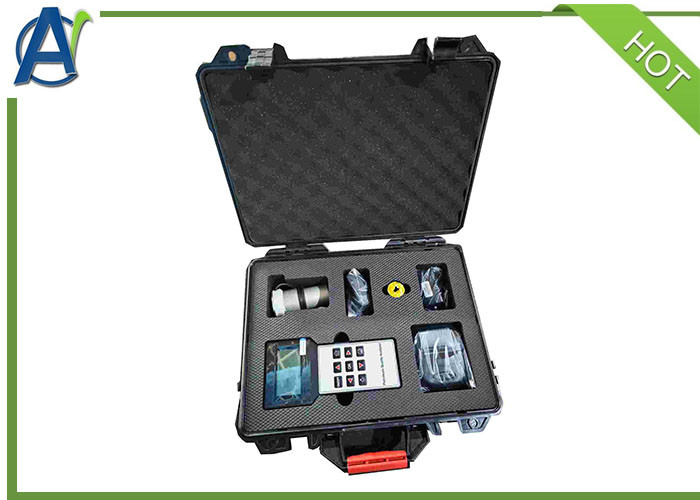

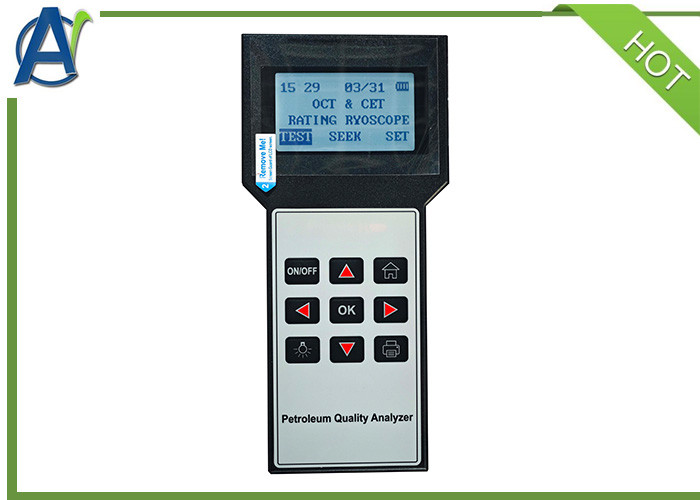

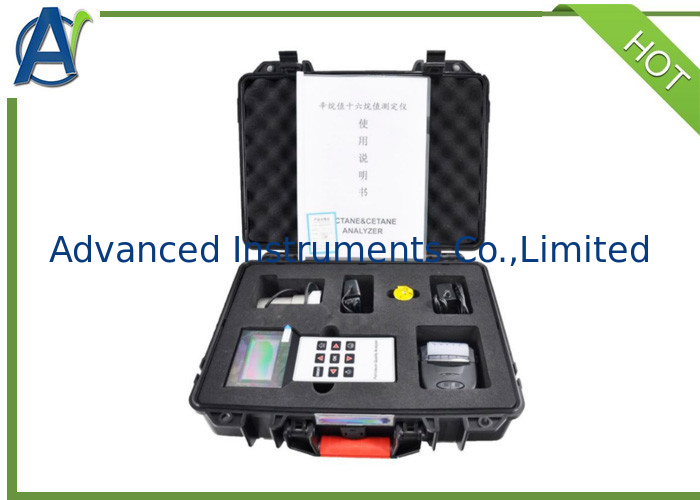

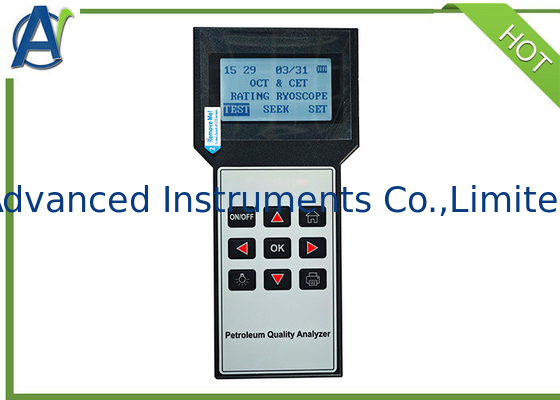

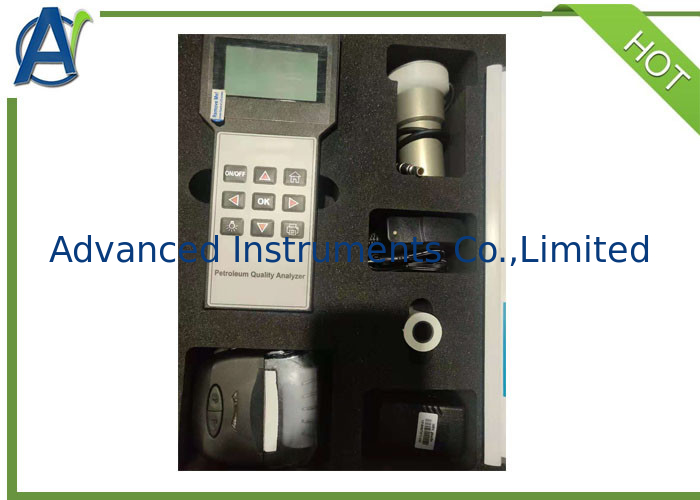

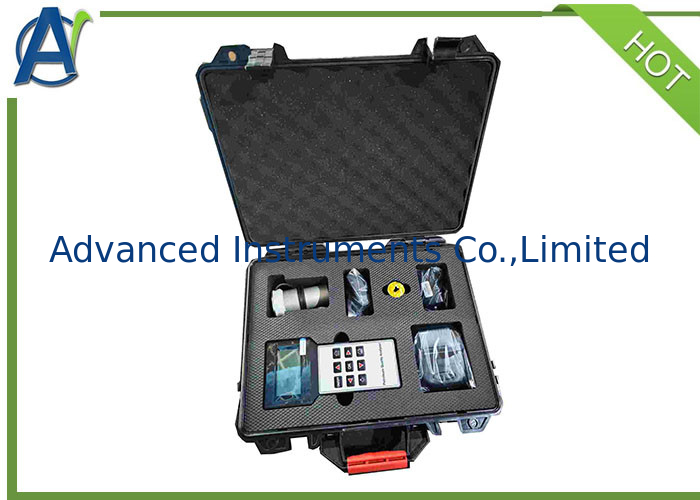

AIC131 is a new generation detector for octane and cetane measurement, with international advanced theory, it can measure the oil's octane and cetane precise value rapidly, store large amount of data; and all the results are printable. The interface is user-friendly. Its sensors adopt full-sealed design with alloying metal. With longer standby-cyclic charging battery, it applies in operation site, outdoor and lab.
Main Features
1.AIC131 can measure both of gasoline's octane value and diesel's cetane value;
2. Rapid and precise measurement, user-friendly operation, larger screen with Chinese/English language, EL background light make it's easier under dark environment, Chinese menu is also available;
3. Tree years quality guarantee for circuit board: we promise for free replacement within three years for any non-artificial quality problems. The sensors adopt full-sealed design with alloying metal. External cover has high strength, shock resistance and water/dust/moisture proof performance. As well as sponge inside.
4. Upper and lower limits pre-setting are available, the monitor will display when it's over the limit, which is convenient for the users.
5. Auto-off function can save energy and realize low power consumption. There are 4 reliable batteries for recycling charging.
Measurement Theory
The theory of octane and cetane detector is based on the measurement of insulate-magnetic permeability and feature of electro-magnetic induction. By detecting the dielectric medium of oil and comparing with the data model, the detector can measure out the value of octane and cetane. The precise sensors can measure out parameters fluctuation of the tiny mediums, then get the result of octane and cetane.
Technical Parameters
| NO. | Parameters Description | Value |
| 1 | The measurement unit of octane is ON (adjustable as users needed) | 40-120 |
| 2 | Permissible error of octane, per unit (max) | ±0.5 |
| 3 | Fluctuate range of octane, per unit (max) | ±0.2 |
| 4 | The measurement unit of cetane is CN (adjustable as users needed) | 20-100 |
| 5 | Permissible error of cetane, per unit CN (max) | ±1 |
| 6 | Fluctuate range of cetane, per unit CN (max) | ±0.5 |
| 7 | Measurement duration (second) | <20 |
| 8 | Critical value for battery when voltage is too low, V | 2.5 |
| 9 | Monitor,mm(L×W×H) | 224x106x40 |
| 10 | Sensor,mm | 60х100 |
| 11 | Weight, Kg (max) | 5 |
| 12 | Operation duration (unit: hour) | 15 |
| 13 | Display | LED screen, printer |
| 14 | Power consumption | 30ma |
