| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-1120 |
| Minimum Order Quantity: | 1 set ASTM D1120 Boiling Point Analyzer |
| Price: | Negotiable |
| Packaging Details: | ASTM D1120 Boiling Point Analyzer packed in Hardboard |
| Delivery Time: | 200 days |
| Payment Terms: | L/C, T/T, Western Union, D/P, D/A |
| Supply Ability: | 20 sets per month |
| Power Supply: | AC220V 50HZ | Test Standard: | ASTM D1120, SH/T0089 |
|---|---|---|---|
| Keyword: | Equilibrium Boiling Point Tester | Heating Mode: | Electric Heating-jacket |
| Refrigeration Mode: | Tap Water Circulation | Temp.controlling Mode: | Solid State Voltage Regulator (SSVD) |
| Total Power: | 500W | Voltage Display: | Voltmeter |
| Highlight: | ASTM D1120 Analyzer,Boiling Point Analyzer,Engine Coolants Analyzer |
||
Introduction

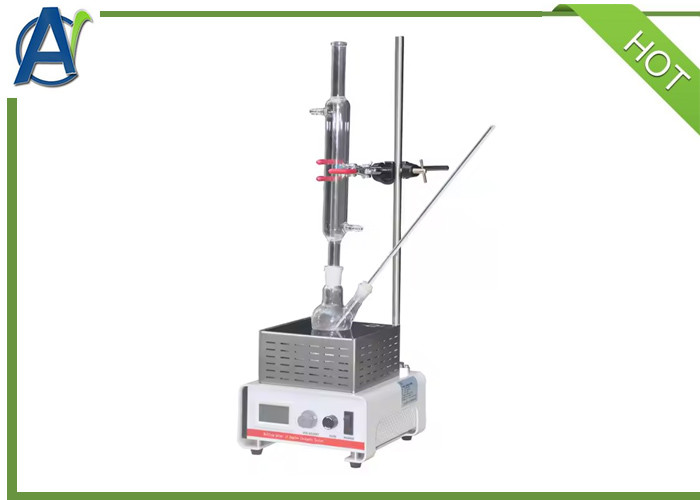

This Boiling Point Analyzer tests the equilibrium boiling point of engine coolants according to ASTM D1120 and SH/T0089 Standards. It is applicable to the dilute or concentrated engine coolant.
Take 60ml testing sample into a 100ml beaker, and heat to boiling at atmospheric pressure.When the gas-liquid is equilibrious, read the sample temperature. After calibrating by atmospheric pressure difference, it is the boiling point of the testing sample.
Characteristic

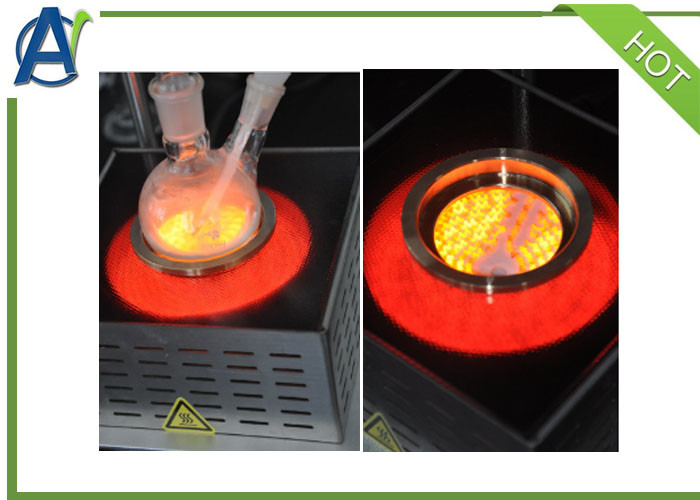

1.Electric heating-jacket, no fire, safety and environmental protection.
2.Integral structure, easy to operate.
3.Tap water circulation cooling.
4.High-power solid state voltage regulator control heater.
5.The surface is adopted by electrostatic spray for easy cleaning.
6.The precision potentiometer can adjust the heating rate.
7.Contact control box is very convenient.
Technical specifications of ASTM D1120 Boiling Point Analyzer
| 1 | Applicable standards | ASTM D1120, SH/T0089 |
| 2 | Heating mode | electric heating-jacket |
| 3 | Refrigeration mode | tap water circulation |
| 4 | Temperature control mode | solid state voltage regulator (SSVD) |
| 5 | Total power | 500W |
| 6 | Voltage display | voltmeter display |
| 7 | Power supply | AC220V 50HZ |
