| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-2430 |
| Minimum Order Quantity: | 1 set Freezing Point Tester |
| Price: | Negotiable |
| Packaging Details: | Freezing Point Tester packed in Plywood case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Test Standards: | ASTM D1177 | Temperature Range: | Room Temp.~-70C |
|---|---|---|---|
| Working Units: | 2 Holes | Warranty: | 1 Year |
| Power Supply: | AC220V±10% 50HZ | Refrigeration Method: | Imported Double Air Compressor |
| Keyword: | Automatic Freezing Point Tester | Freezing Point Range: | -54℃～2℃ |
| Highlight: | ASTM D1177 analyzer,Freezing Point Analyzer,Freezing Point Measuring |
||
Summary

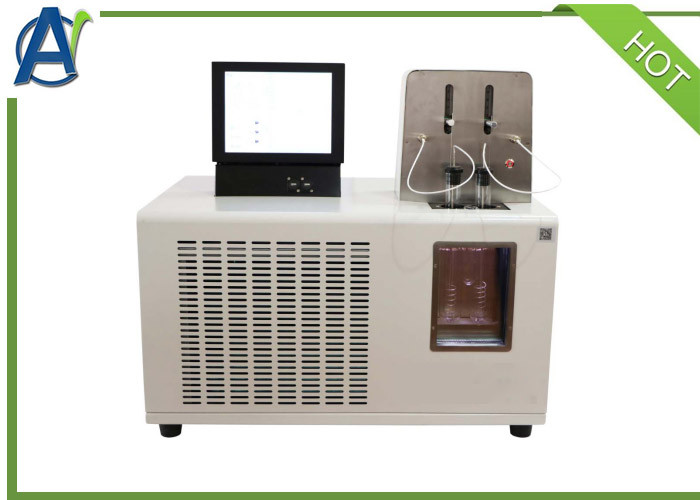

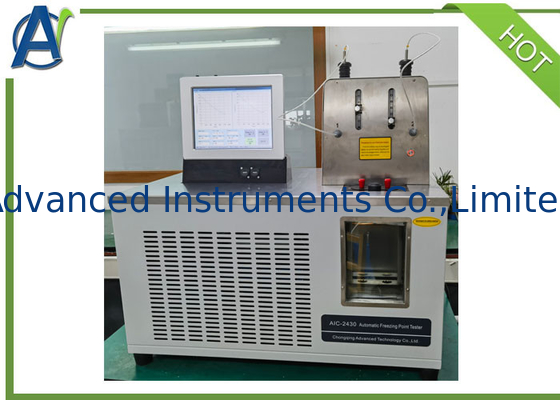

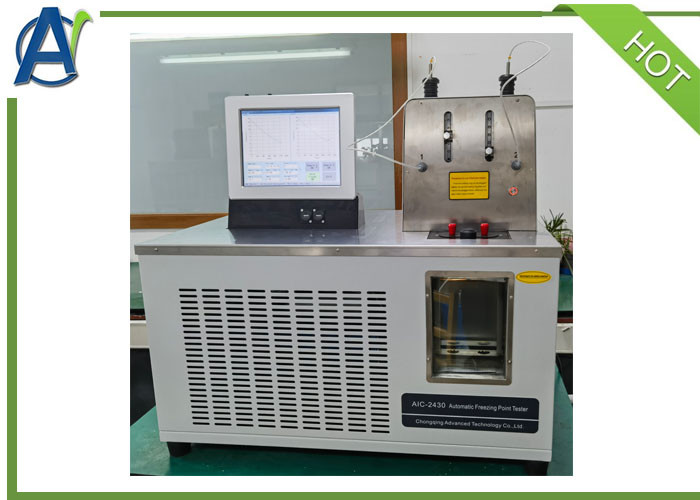

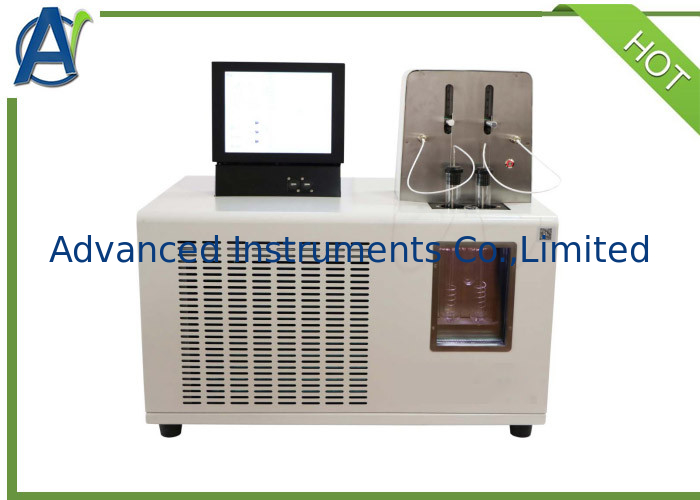

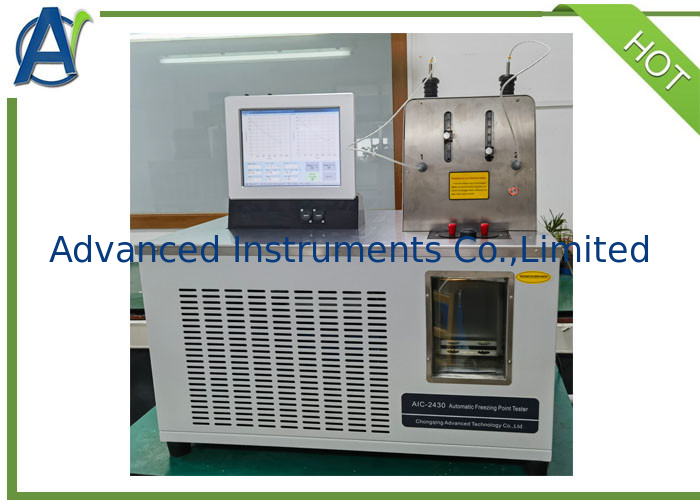

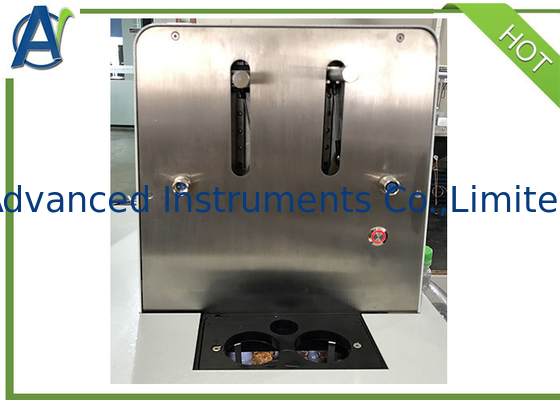

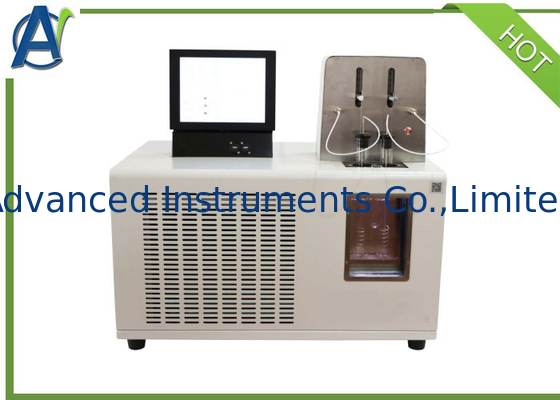

The automatic freezing point analyzer is designed and made as per the Industrial Standard of People’s Republic of China GB/T 2430 ,SH/T0090-1991(2000), ASTM D1177,ASTM D2386 Standard Test Method for Freezing Point of Engine Coolant. It can be used to test freezing point of engine coolants and condensation liquids.
Main features

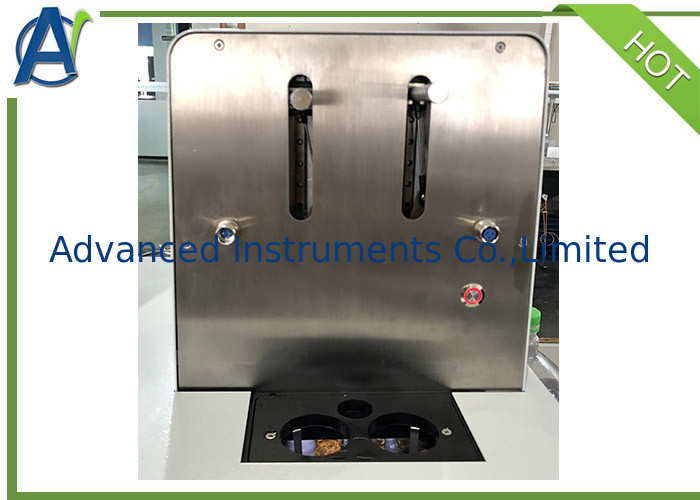

1. The cold bath is made of stainless steel,double glass observing window,with the advanced temperature control technology,the
lowest temperature degree is -70℃,the temperature accuracy is ±0.5℃,complying with standard GB/T 2430,SH/T 0090 and ASTM D1177,D2386 for the freezing point test requirement.

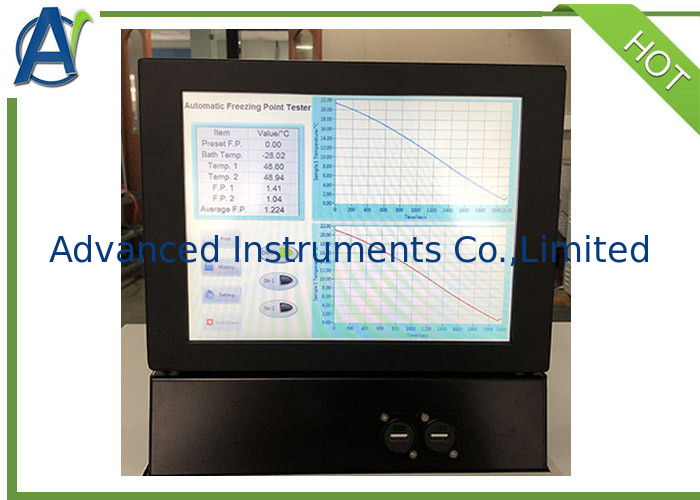

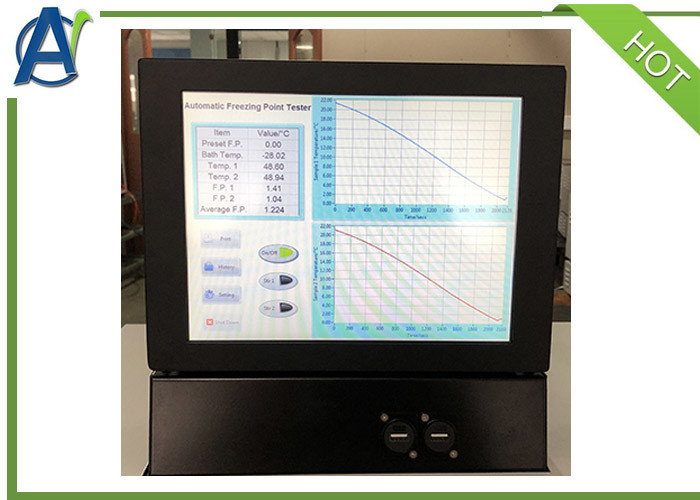

2.Automatically judge the freezing point temperature.
3.According to the different configuration,it can be used to test the freezing point etc.indexes of jet fuel,engine coolant and its concentrated solution,it's a multipurpose freezing point tester.
4.It's the floor stand structure,the work table-board is made of stainless steel,concise design,nice appearance,convenient usage,fully furnished.
5.The maximal characteristic:integrated to measure jet fuel freezing point and engine coolant freezing point;automatically stirring sample and judging the freezing point temperature,fast cooling,high precision temperature control,full spraying plastic case,wear well.
Technical specifications
| 1 | Power supply | AC 220 V±10%, 50 Hz |
| 2 | Working bath | stainless steel,double vacuum glass observing window |
| 3 | Freezing point range | -54℃～2℃ |
| 4 | Cold bath measurement temperature | -70℃～20℃ |
| 5 | Temperature controlling accuracy | ±0.5℃ |
| 6 | Bath liquids stirring | electric stirring.the power is 6W,1200r/min |
| 7 | Refrigerator system | imported refrigerator compressor |
| 8 | Sample stirring | mechanical stirring is 0～120r/min,continuously adjustable |
| 9 | Ambient temperature | ≤30℃ |
| 10 | Relative humidity | ≤85% |
| 11 | Maximum power consumption | 2000W |
| 12 | Dimension | 560㎜×550㎜×810㎜ |
Accessories List
| No. | Name | Unit | Qty |
| 1 | AIC-2430 Automatic Freezing Point Analyzer | Set | 1 |
| 2 | Double-walled tube | Piece | 2 |
| 3 | Tube plug | Piece | 2 |
| 4 | Temperature sensor | Piece | 2 |
| 5 | Stainless steel spiral tube agitator | Piece | 2 |
| 6 | Bath cover | Piece | 2 |
| 7 | Single walled tube | Piece | 1 |
| 8 | Test tube stand | Set | 1 |
| 9 | Operation Manual | Piece | 1 |
| 10 | Quality Certificate | Piece | 1 |
| 11 | Repair Guarantee | Piece | 1 |
