| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-7279 |
| Minimum Order Quantity: | 1 set Automated Houillon Viscometer |
| Price: | Negotiable |
| Packaging Details: | One Automated Houillon Viscometer packed in one plywood case |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Power Supply: | AC220V /50HZ | Test Standard: | SH/T0956,ASTMD7279,ASTM D445 |
|---|---|---|---|
| Measuring Range: | 2~200cst | Temperature Control Range: | 20~100ºC±0.02ºC |
| Timing Accuracy: | ±0.01S | Heating Method: | Spiral Electric Heater |
| Display: | Color Touch Screen | Dimension: | 160*400*350cm3 |
| Weight: | 15KG | Power Consumption: | 1500W |
| Highlight: | ASTM D7279 Houillon Viscometer,Low Temperature Automated Houillon Viscometer,ASTM D445 Automatic Kinematic Viscosity Tester |
||
I. Main technical features

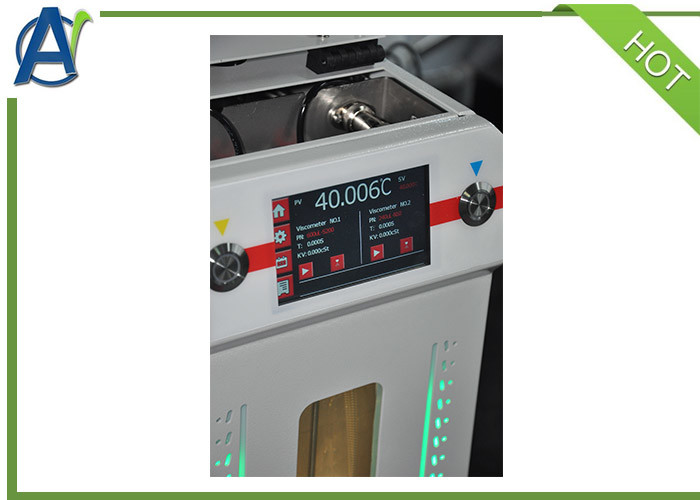

1.It is controlled by a single chip microcomputer and displayed on a color touch screen, which is stable and reliable;
2.Fast measurement speed, the fastest result is 30s, generally 3-5 minutes;
3.Good man-machine interface, easy to operate;
4.High degree of automation. Measurement, cleaning, drying and result calculation are all completed automatically;
5.Clean and fast, low cleaning cost. A cleaning process generally consumes no more than 10ml of cleaning liquid;
6.Software and hardware dual overtemperature protection, overtemperature alarm, dry burn protection function;
7.Small amount of test sample, less than 1ml;
8.The test results are highly consistent with GB / t265 and GB / t11137 standard methods;
9.The detection process fully meets the provisions of national standards, and the data is reliable;
10.This Automated Houillon Viscometer can also calculate Viscosity index;
11.Three color lights to indicate the working status;
12.This Automated Houillon Viscometer has multi-point temperature correction function;
II. Main technical specifications
| 1 | Test standard | SH/T0956,ASTMD7279,ASTM D445 |
| 2 | Measuring range | 2~200cst |
| 3 | Temperature control range | 20~100ºC,(20ºC need connect external cooling source) |
| 4 | Temperature control accuracy | ±0.02ºC |
| 5 | Working units | 2 |
| 6 | Timing accuracy | ±0.01S |
| 7 | Heating method | Spiral electric heater |

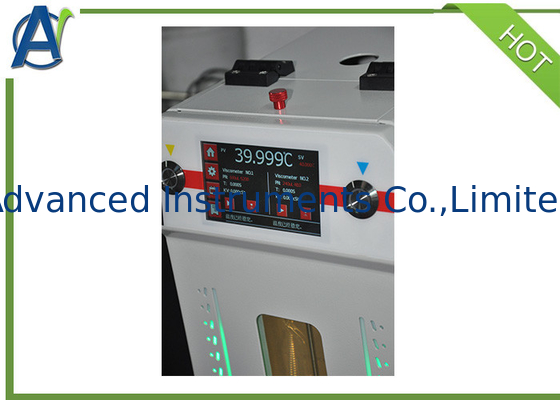

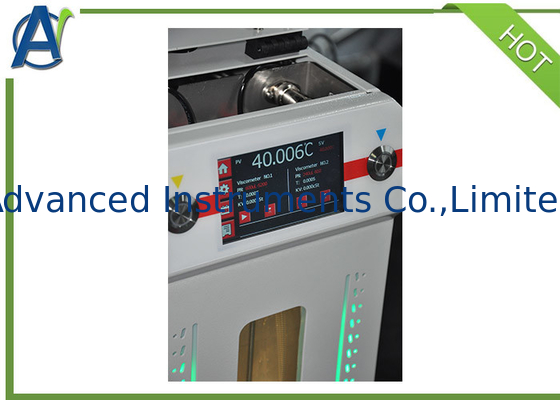

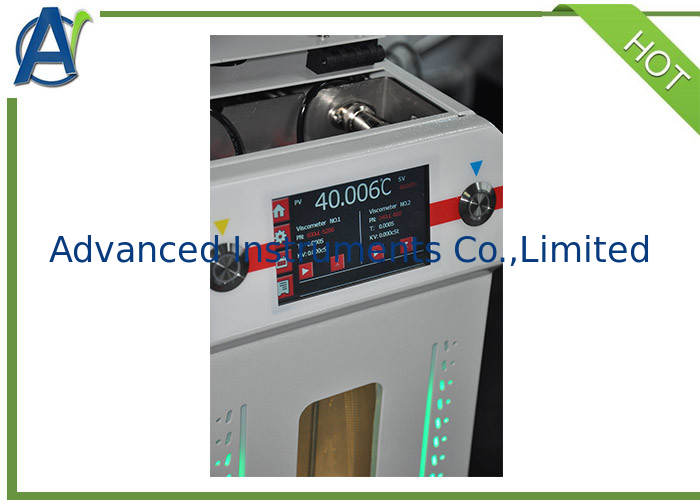

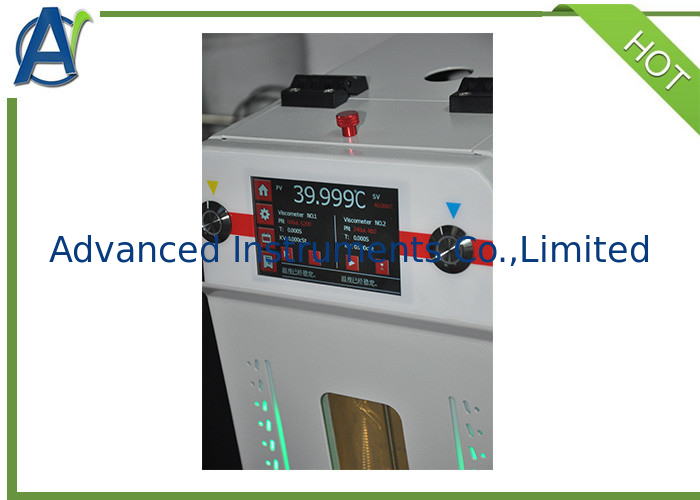

| 8 | Display | color touch screen |
| 9 | Control mode | Automatic measurement, cleaning and drying |
| 10 | Data storage | 1000 groups of test results |
| 11 | Power supply | AC220V±10%,50Hz |
| 12 | Overall power | 1500W |
| 13 | Dimension | 160*400*350cm3 |
| 14 | Weight | 15KG |
Factory overview
Chongqing Advanced Technology Co., Ltd. is a professional supplier which is committed to offer best testing equipment from China for our clients, and our main products are fire testing equipment, petroleum products testing equipment, electrical testing equipment and general laboratory instruments.
Our instruments are widely used in various fields: Scientific institutions, colleges, inspection institutions, automotive, power sector, oil& Gas, aerospace, building material, wire and cable, furniture, textile etc. All Advanced Technology′s testing equipment are designed according to international test standards, such as ISO, ASTM, IEC, DIN, EN, GB, JIS, ANSI, UL, TAPPI, AATCC, VDE, CSA, CEN and so on.
Package
Packing: standard export carton/ wooden case per set.
Delivery method: usually delivered by express or air, other method are also available if necessary.
Customer Feedback
Australia
Germany
USA
FAQ
1.What's the delivery time?
About 35 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
