| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-1882 |
| Minimum Order Quantity: | 1 set AASTM D1882 Analyzer |
| Price: | Negotiable |
| Packaging Details: | ASTM D1882 Analyzer packed in Hardboard |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 Sets per Month |
| Test Standard: | SH/T0084,ASTM D1882 | Refrigeration Method: | Compressor |
|---|---|---|---|
| Temperature Control Method: | Digital PID | Temperature Compensation Range: | Ambient~25℃±0.2℃ |
| Power Supply: | AC220V/50Hz | Alarm: | Buzzer |
| Timing Method: | Digital Timer | Warranty: | 1 Year |
| Highlight: | ASTM D1882 analyzer,ASTM D1882,ASTM D1882 tester |
||

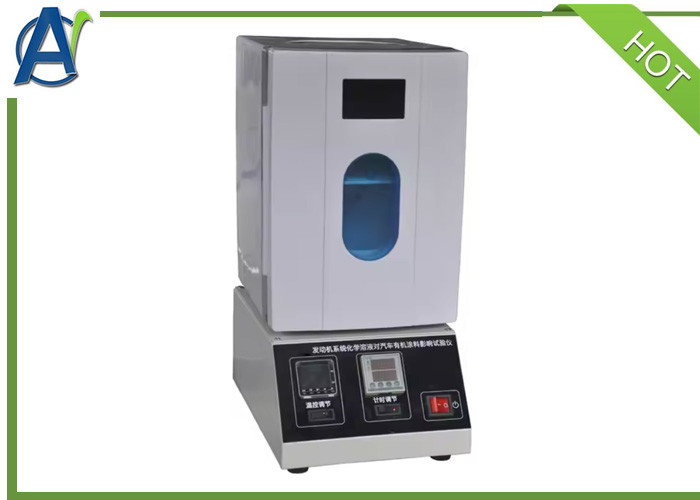

Introduction
The instrument operates on the principle of exposing chemical concentrate solutions or their dilutions from the cooling system to specific organic coatings used in automobile production for 1 hour at a certain temperature. Then, the surface of the coating is visually inspected for any discoloration, loss of luster, softening, swelling, or other peculiar phenomena.
This instrument is suitable for testing chemical solutions in the cooling system, including coolants, summer rust inhibitors, cooling system cleaners, flush agents, and stop-leak additives.
Characteristic
1. Fully enclosed compressor refrigeration;
2. Microcomputer-controlled temperature controller with digital display, accuracy 0.1°C, PT100 RTD temperature probe. Adjustment accuracy ±0.1°C;
3. Stainless steel air bath body;
4. Transparent observation of the test process;
5. Microcomputer-controlled timer with digital display, accuracy 0.01 seconds, with alarm;
6. Alarm prompt when the test time is reached.
Technical specifications
| 1 | Applicable standards | SH/T0084,ASTM D1882 |
| 2 | Refrigeration method | Compressor |
| 3 | Temperature control method | Digital PID |
| 4 | Temperature control range | ambient~25℃ |
| 5 | Temperature control accuracy | ±0.2℃ |
| 6 | Timing method | digital timer |
| 7 | Alarming method | buzzer |
| 8 | Power supply | AC22V/50Hz |
