| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | F8225 |
| Minimum Order Quantity: | 1 set ISO4925 Rust Prevention Performance Test Apparatus |
| Price: | Negotiable |
| Packaging Details: | ISO4925 Rust Prevention Performance Test Apparatus packed in Plywood case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Test Standards: | ISO4925 | Temperature Range: | 30℃~100℃ |
|---|---|---|---|
| Timing Method: | Digital Timer | Warranty: | 1 Year |
| Power Supply: | AC220V±10% 50HZ | Temperature Control Method: | Digital PID Temperature Controller |
| Color: | Black | Glass Test Tube: | φ22mm*175mm |
| Highlight: | Rust Prevention Test,Brake Fluid Test Apparatus,ISO4925 |
||
Summary

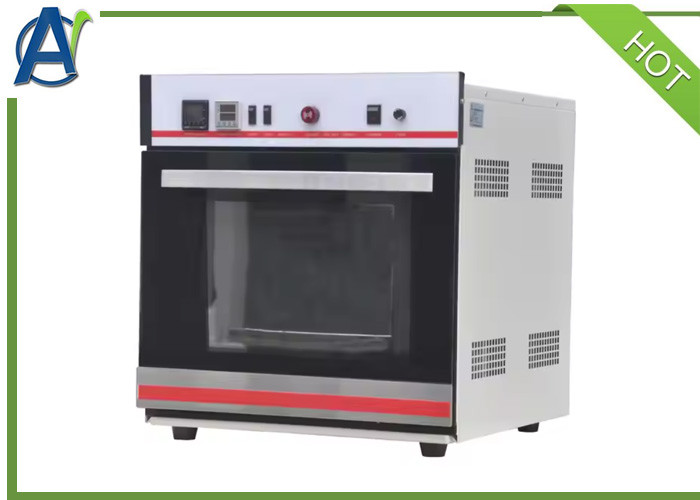

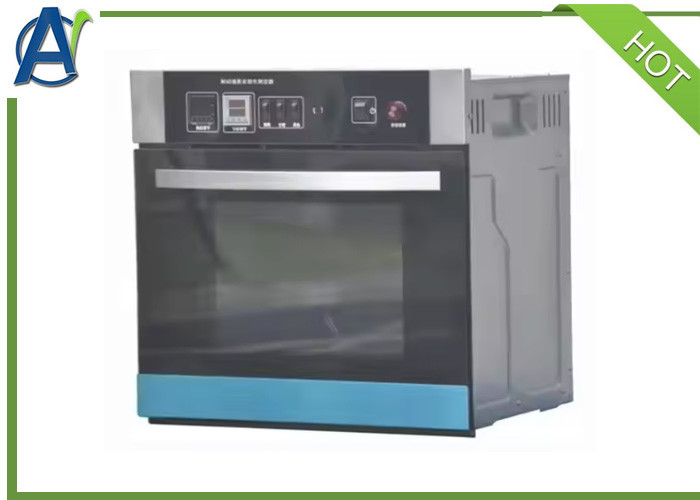

This instrument is primarily used to test the rust prevention performance of brake fluid.
The principle involves placing the brake fluid into the device, setting the temperature to 35°C, and maintaining a humidity level of 91% for a period of 24 hours. The rust prevention capability of the brake fluid is then assessed based on the condition of the test specimen's surface.
Main features
◆ The glass test tube meets standard requirements, with a diameter of 22mm and a height of 175mm;
◆ The heating chamber is equipped with ventilation holes on the top;
◆ Comes with cast iron pieces, measuring 80mm in length, 13mm in width, and 2.5mm in thickness, as well as aluminum pieces of the same dimensions;
◆ Comes with aluminum foil with a thickness ranging from 0.02 to 0.06mm, containing 99.9% tin;
◆ The microcomputer temperature controller features PID self-tuning and a PT100 temperature sensor for high precision;
◆ The digital time controller has a buzzer alarm to indicate the end of the test;
◆ The instrument's casing is made of cold-rolled steel and treated with electrostatic spray coating.
Technical specifications
| 1 | Power supply | AC 220 V±10%, 50 Hz |
| 2 | Temperature control range | 30℃~100℃ |
| 3 | Humidity range | 20%~98%R.H. |
| 4 | Temperature and Humidity Resolution/Uniformity. |
±0.1℃；±0.1%R.H./±1.0℃；±3.0%R.H. |
| 5 | Temperature control method | Digial PID temperature controller |
| 6 | Timing method | Digital timer |
| 7 | Thickness of aluminum foil | 0.02 to 0.06mm |
| 8 | Cast iron pieces | 80mm in length, 13mm in width, and 2.5mm in thickness |
| 9 | Glass test tube | φ22mm*175mm |
