Advanced Instruments Co.,Limited
To Be Advanced in Quality and Service!
| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | F8200 |
| Minimum Order Quantity: | 1 set Low Temperature Flowability Test Apparatus |
| Price: | Negotiable |
| Packaging Details: | Low Temperature Flowability Test Apparatus packed in Plywood case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Test Standards: | ISO4925 | Temperature Range: | Ambient~55℃ |
|---|---|---|---|
| Timing Method: | Digital Timer | Warranty: | 1 Year |
| Power Supply: | AC220V±10% 50HZ | Temperature Control Method: | Digital PID Temperature Controller |
| Color: | Black | Alarming Method: | Buzzer |
| Highlight: | Flowability Test Apparatus,Fluidity Test Apparatus,Brake Fluid Analysis |
||
Summary

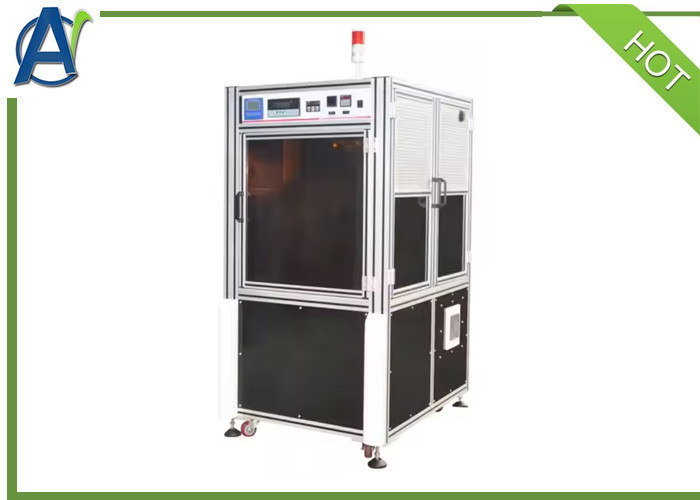

This Low Temperature Flowability Test Apparatus is suitable for determining the flowability and appearance changes of brake fluid at low temperatures.
The test principle involves placing it at a specified test temperature for a set period, then removing it to observe changes in appearance such as transparency, precipitation, layering, etc., while also measuring flowability.
Main Features
1. Imported Fully Enclosed Compressor for Refrigeration: Offers high cooling capacity.
2. Exclusive Vibration Damping Technology: Ensures low noise levels.
3. Microcomputer Temperature Controller: With PID self-tuning and PT100 temperature sensor for high precision.
4. Digital Timer with Buzzer Alarm: Alerts when the experiment is finished.
5. Instrument Housing: Made of cold-rolled steel plate with a surface treated by electrostatic spray coating.
Technical specifications
| 1 | Power supply | AC 220 V±10%, 50 Hz |
| 2 | Temperature control range | ambient~55℃ |
| 3 | Cooling method | Compressor |
| 4 | Temperature control method | Digial PID temperature controller |
| 5 | Timing method | Digital timer |
| 6 | Alarming method | Buzzer |
