| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | F8095 |
| Minimum Order Quantity: | 1 set Stroke Simulation Testing Equipment |
| Price: | Negotiable |
| Packaging Details: | Stroke Simulation Testing Equipment packed in Plywood case |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Test Standards: | ISO4925 | Temperature Range: | 20~150℃±2℃ |
|---|---|---|---|
| Timing Method: | Digital Timer | Warranty: | 1 Year |
| Power Supply: | AC220V±10% 50HZ | Stroke Rate: | 1000 Cycles/h |
| Pressure Range: | 7Mpa±0.3 Mpa | Stroke Count: | 85,000 Cycles |
| Highlight: | Stroke Simulation Testing Equipment,Brake Fluids Testing Equipment,ISO4925 Equipment |
||
Summary

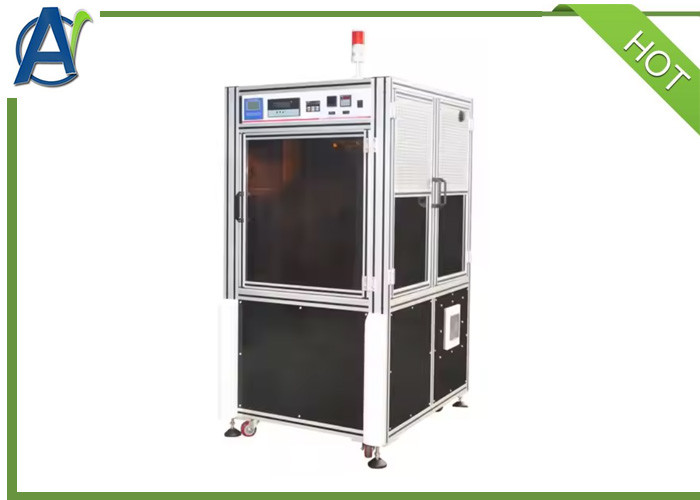

This Stroke Simulation Testing Equipment is suitable for evaluating the lubricating performance and material compatibility of brake fluid.
Under specified test requirements, a total of 85,000 stroke tests are conducted to observe the changes in relevant materials.
Main Features
1. One cast iron brake master cylinder, with a cylinder diameter of 28.58mm to 28.65mm, and an aluminum alloy piston with a diameter of 28.52mm to 28.55mm.
2. Three brake slave cylinders, with a cylinder diameter of 28.60mm to 28.66mm, and an aluminum alloy piston with a diameter of 28.52mm to 28.55mm.
3. A set of specialized pump body adjustment installation plates.
4. The main pipeline is made of uncoated steel pipe.
5. A standard driving mechanism capable of generating a working pressure of 8 Mpa.
6. Digital display of stroke rate with an adjustable device.
7. Radiation-free heating system.
8. Rubber cups that meet standard requirements.
9. Microcomputer temperature controller with digital display, temperature control range: 20~150℃±2℃, PT100 temperature sensor for high precision.
10. Pressure gauge displays working pressure, with a precision pressure regulating valve for adjustment, pressure: 7Mpa±0.3 Mpa.
11. Digital timer with audible alarm.
12. Fully enclosed compressor refrigeration, with gas circulation to reduce the temperature of the test chamber.
13. Integrated structure for easy operation.
Technical specifications
| 1 | Power supply | AC 220 V±10%, 50 Hz |
| 2 | Temperature control range | 20~150℃±2℃ |
| 3 | Cooling method | Compressor |
| 4 | Temperature control method | Digial PID temperature controller |
| 5 | Timing method | Digital timer |
| 6 | Alarming method | Buzzer |
| 7 | Pressure range | 7Mpa±0.3 Mpa |
| 8 | Pressure Control | Precision pressure regulating valve |
| 9 | Pressure Display | Precision pressure gauge |
| 10 | Stroke Rate | 1000 cycles/h |
| 11 | Stroke Count | 85,000 cycles |
