Advanced Instruments Co.,Limited
To Be Advanced in Quality and Service!
| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | F8205 |
| Minimum Order Quantity: | 1 set Evaporation Loss Test Apparatus |
| Price: | Negotiable |
| Packaging Details: | Evaporation Loss Test Apparatus packed in Plywood case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Test Standards: | ISO4925 | Temperature Range: | Ambient~150℃ |
|---|---|---|---|
| Timing Method: | Digital Timer | Warranty: | 1 Year |
| Power Supply: | AC220V±10% 50HZ | Temperature Control Method: | Digital PID Temperature Controller |
| Color: | Black | Alarming Method: | Buzzer |
| Highlight: | Evaporation Loss Test Apparatus,Evaporation Loss Analyzing Apparatus,Brake Fluid Analyzing Apparatus |
||
Summary

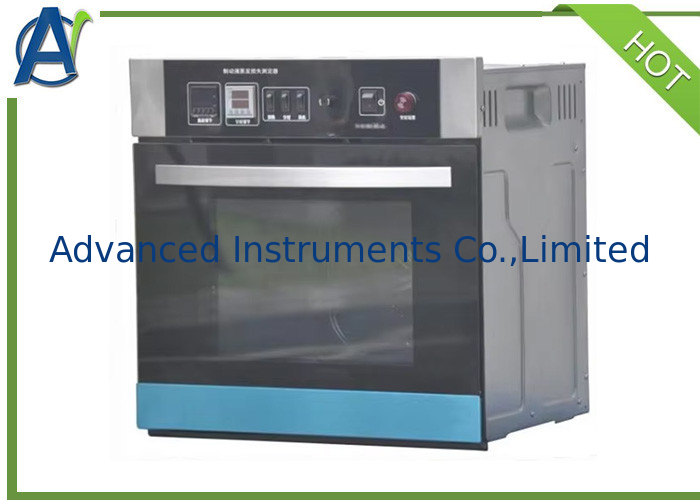

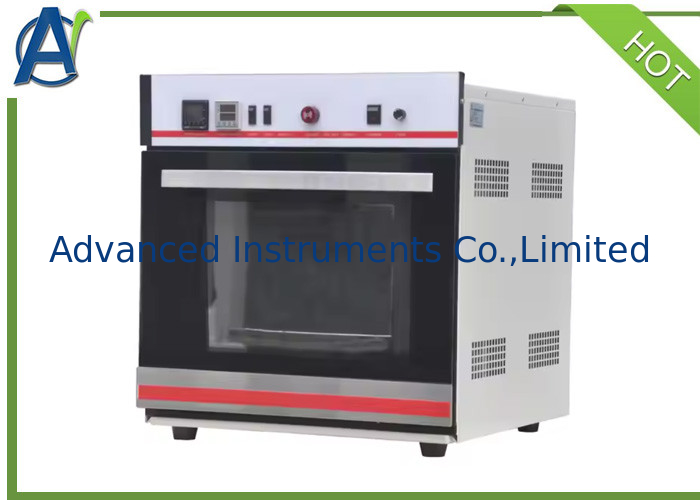

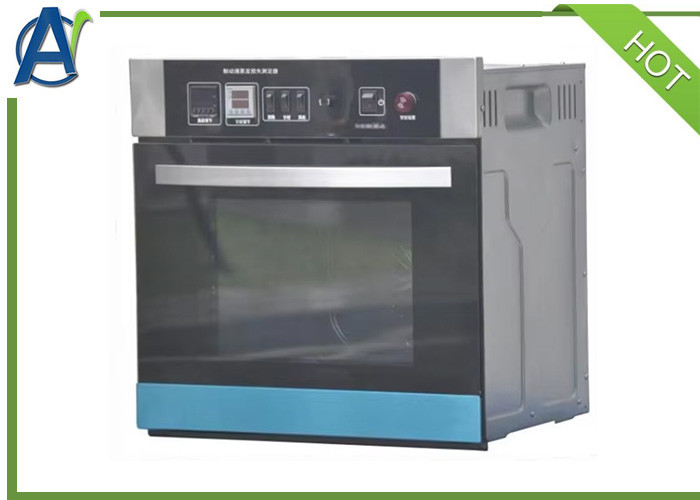

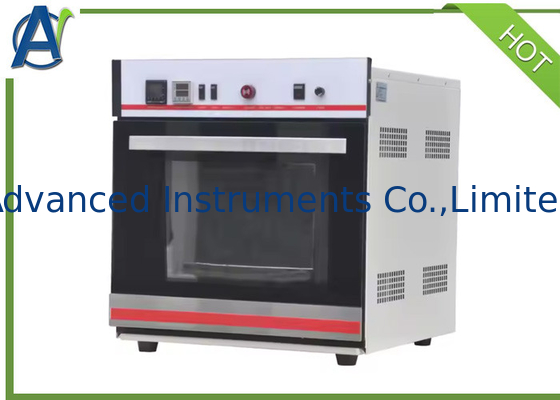

This Evaporation Loss Test Apparatus is used to evaluate the high-temperature performance of brake fluid.
The test principle involves placing a specified amount of brake fluid in the instrument and maintaining it at a constant temperature for 168 hours. The evaporative loss is then calculated based on the mass change before and after the constant temperature exposure.
Main Features
1. Specialized Petri Dishes: Meet standard requirements with an outer diameter of 100mm and a height of 15mm.
2. Heating Chamber with Ventilation: The top of the heating chamber is equipped with ventilation holes.
3. Exclusive Vibration Damping Technology: Features low noise levels.
4. Microcomputer Temperature Controller: With PID self-tuning and PT100 temperature sensor for high precision.
5. Digital Timer with Buzzer Alarm: Alerts when the test is completed.
6. Instrument Housing: Made of cold-rolled steel plate with a surface treated by electrostatic spray coating.
Technical specifications
| 1 | Power supply | AC 220 V±10%, 50 Hz |
| 2 | Temperature control range | ambient~150℃ |
| 3 | Heating method | Electric heating tube heating |
| 4 | Temperature control method | Digial PID temperature controller |
| 5 | Timing method | Digital timer |
| 6 | Alarming method | Buzzer |
